What is Thunderbolt 3?
Thunderbolt 3.0 brings you an extreme high data transfer speed
Thunderbolt 3.0 (TB3) interface for an extreme high data transfer speed. And both of the two TB3 ports are equipped with a up to 40Gb/s data transfer rate which is 4 times faster than USB 3.1 Gen 2 ,2 times faster than Thunderbolt 2.0 and even 8 times than SATA III interface. You could definitely use it to play your 4K high-resolution films with no any lagging hassle.
Thunderbolt 3.0 interface not only brings you this high data transfer rate advantage, it also let you chain maximum up to 6 products (or other compatible storage products).
Thunderbolt™ 3 The USB-C that does it all
More Speed. More Pixels. More Possibilities
A Single Port. A Universe of Possibilities.
Discover what makes Thunderbolt™ 3 the single most advanced port available today.Connect to any display, Thunderbolt, or USB device
+ 40 Gb/s - 8x faster than USB 3.0
+ 4x more video bandwidth than HDMI
+ External graphics, single-cable docks and more
Connect to everything
+ Enjoy a new level of simplicity
+ For the first time, one computer port connects to Thunderbolt devices, to every display1, and to billions of USB devices
A single cable does it all with sweet efficiency
+ The most advanced docks available
+ Effortlessly dock to everything you need
+ Want even more? Daisy chain up to six devices from one port on your computer
+ Plus, charge up your laptop and devices quickly
Desktop level performance from a lightweight notebook with GAME one simple connection DOCK
+ Connect external graphics and crush the latest games at optimum settings
+ Connect multiple displays for even more excitement
+ Access your game library with super fast storage
Create the easy way
+ Open up fresh possibilities for photo and video editing with external graphics
+ Connect a computer to super fast storage, one 5K or two 4K displays
+ 8x faster than USB 3.0 and 4x more video bandwith than HDMI
+ For multi-stream HD and 4K video, top speed means less time waiting,more time for you
All our Thunderbolt 3 products support USB C type connector and you could always use it to charge not only your mobile phone but notebook thru its 15W 5V/3A PD (Power Delivering) feature.
Thunderbolt 3 products also support a Mini DisplayPort which gives you a very easy way to connect to your display device. This Mini DisplayPort is fully complaint to all the existing DVI, HDMI, and VGA display devices thru an adapter.
Most of the Operating Systems are for Thunderbolt 3 Products

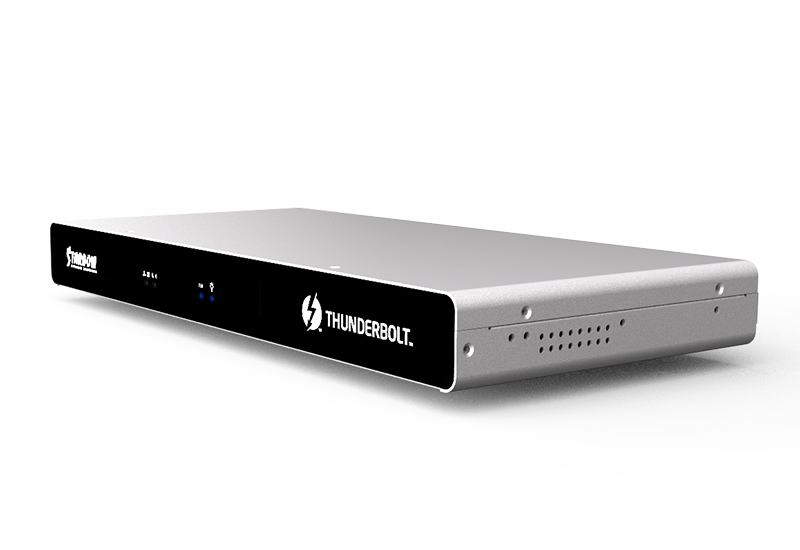

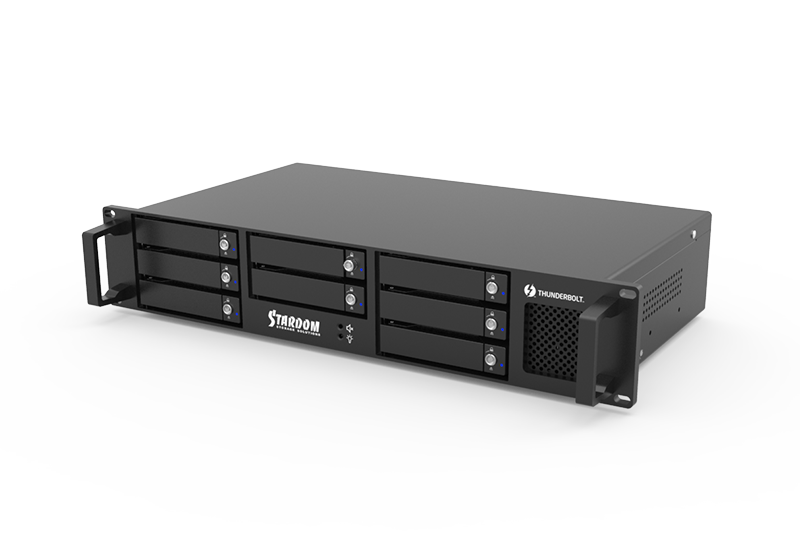

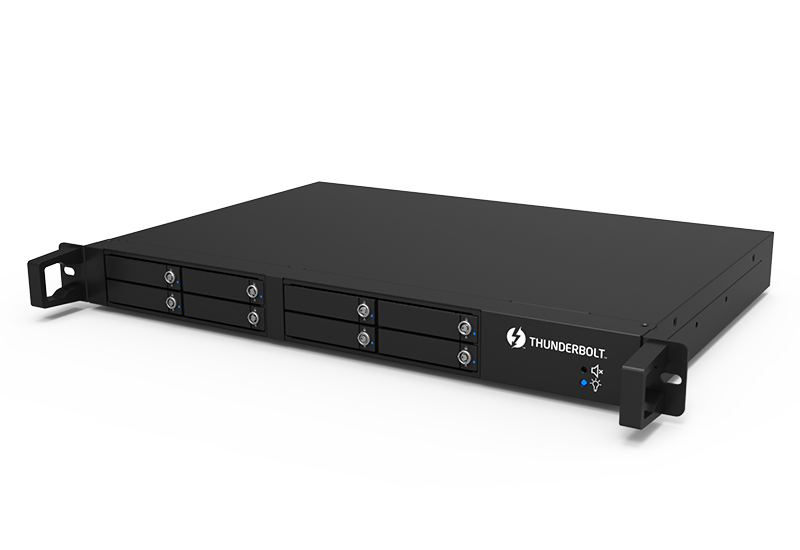

STARDOM product list which support Thunderbolt 3
Look for the Thunderbolt icon on your computer purchase. It’s the best connection you’ll make this year.
Frequently Asked Questions (FAQs)
Find answers to frequently asked questions about Thunderbolt 3 below. Use links on the right for more detailed info.
What is Thunderbolt technology?
Users have long wanted desktop-level performance from a mobile computer. Thunderbolt was developed to create new user experiences by simultaneously supporting the fastest data and most video bandwidth available on a single cable, while also supplying power.
What is Thunderbolt 3?
Computer ports with Thunderbolt 3 provide 40Gbps Thunderbolt – double the speed of the previous generation, USB 3.1 10Gbps, and DisplayPort 1.2. For the first time, one computer port connects to Thunderbolt devices, every display, and billions of USB devices. A single cable now provides four times the data and twice the video bandwidth of any other cable, while also supplying up to 100W of power. It’s unrivaled for new uses, such as 4K video, single-cable docks with charging, external graphics, and built-in 10 GbE networking. Simply put, Thunderbolt 3 delivers the best USB-C.Thunderbolt technology is a transformational high-speed, dual protocol, PC I/O delivering performance, simplicity and flexibility. Thunderbolt I/O technology lets you move data between your devices and your computer with 2 channels of 10Gbps flowing both ways (upstream and downstream) at the same time. And it allows you to connect as many as 6 devices, daisy chained, through a single compact port. Watch our What is Thunderbolt 3 video on the Thunderbolt YouTube channel.
What are the video formats supported by Thunderbolt 3?
Thunderbolt 3 is based on the DisplayPort 1.2 specification and can support up to 2 streams (eight lanes) of DisplayPort 1.2 video bandwidth. A single cable now provides four times the data and twice the video bandwidth of any other cable, while also supplying up to 100W of power. One 4K display (4096 x 2160) 30-bit @ 120 Hz One 5K display (5120 x 2880) 30-bit @ 60 Hz Two 4K displays each (4096 x 2160) 30-bit @ 60 Hz
Why is Thunderbolt the best USB-C for docking?
Now, one compact port provides Thunderbolt 3 data transfer, support for two 4K 60 Hz displays, and quick notebook charging up to 100W with a single cable. Also, any Thunderbolt or USB dock can connect to a Thunderbolt 3 computer making it the most advanced and versatile USB-C docking port available.
Can I connect USB devices to a Thunderbolt 3 port?
Yes, Thunderbolt 3 ports are fully compatible with USB devices and cables.
Can I connect Display Port devices to a Thunderbolt 3 port?
Yes, Thunderbolt 3 ports are fully compatible with DisplayPort devices and cables.
Is Thunderbolt 3 backwards compatible with Thunderbolt and Thunderbolt 2?
Yes, solutions and products built to Thunderbolt and Thunderbolt 2 specifications will work with Thunderbolt 3 via an adapter.
Why did Thunderbolt 3 move to the USB-C connector?
Thunderbolt 3 needed a new connector to achieve 40Gbps and fit into smaller form factor devices. With the USB-C connector allowing for alternate modes, it made sense to bring Thunderbolt to this connector and create a superset solution that supports both Thunderbolt and USB.
What is the difference between Thunderbolt 3 and USB-C?
Thunderbolt 3 is a superset solution which includes USB 3.1 (10Gbps), and adds 40Gbps Thunderbolt and DisplayPort 1.2 from a single USB-C port. This enables any dock, display, or data device to connect to a Thunderbolt 3 port, fulfilling the promise of the USB-C connector. See more information on the Thunderbolt Blog
How is Thunderbolt 3 able to connect to every display?
Thunderbolt 3 provides DisplayPort, which can natively connect to all displays with DisplayPort and Mini DisplayPort, and via adapters can connect to all other modern display interfaces, including HDMI, DVI, and VGA.
