4-Bay 2.5”/3.5" SATA III HDD/SSD Hardware RAID Storage


USB 3.0, e-SATA, Hot-Swappable Drive


The SATA hard disk drive with the highest cost-benefit ratio


The ST4-SB3 is equipped with two types of high-speed interfaces, and can be used as a 6G 3.5"/2.5" high-speed SATA hard drive. When using the e-SATA interface, transmission speeds can reach 476MB/s, while transmission speeds for the USB3.0 interface are 386MB/s. These two types of interfaces achieve high transmission speeds at lower cost, making them suitable for high-speed image processing or image galleries with large capacity requirements.

Large capacity (up to 32TB) for all your creations


ST4-SB3 is compatible with a range of 8TB SATA hard drive brands. When used with a RAID card in RAID 0 mode, installing four 8TB hard drives allows the system to provide up to 32TB of storage space from a single drive; with a RAID card in RAID 5 mode, the ST4-SB3 can provide secure storage space of 24TB, ensuring the safety of your important data at all times.





Tough and durable shielding body


The ST4-SB3 beats any compact four drive systems with its seamless, 3.5mm thick full aluminum built body that’s robust to withstand the most demanding of use. With aluminum body, the system dissipates heat faster for a greater stability and performance that also extends the lives of the drives.




Compact to suit any desktop environment


Although the ST4 holds up to four 3.5/2.5 inch drives and includes a 250 watt power supply, the overall size (approx. 6.5 inches tall x 5 inches wide) of the enclosure is compact and will not take up much room of your desktop space. Moreover, the system is equipped with a large quiet fan for continuous drawing away heat from the inside of the system for you drive to run comfortably.



Able to recognize four hard drives with just one e-SATA cable

ST4-SB3's e-SATA allows for port multiplication. A single port can support four large capacity hard drives, allowing the user to directly view all four drives. This is very convenient for users who use a single hard drive as their image gallery, as they can easily swap hard drives without cabling issues. If you need to access a lot of image and video galleries, you can change the entire image gallery by swapping hard drives, as simple as changing a DVD.

[ When using the e-SATA interface, the ST4-SB3 supports hot swappable hard drives, meaning you can directly swap hard drives when the power is on, as simple as changing a CD.When swapping hard drives make sure the hard drive is not in read or write mode.]

Never run out of hard drive space


As your iPhoto library grows, it may become too big to store on your computer’s hard drive. Aperture lets you set up as many external drives as you want and specify where to store each of your photos — without changing anything in your Aperture library. You can access and edit your photos the way you usually do, no matter where the originals are stored. This feature also allows you to add hard drives one at a time, whenever you need them. So your setup can grow along with your library.

Why not combine an ES2-P2 with the ST4-SB3 and use Mac OS RAID utility to set up RAID 0?


Every ES2-P2 port supports transmission speeds of up to 6G/s. By using Mac OS RAID utility to set up RAID 0 from four hard drives, the user can achieve transmission speeds of around 468MB/s, making video editing much easier.

The new ST4-SB3 hard drive tray can now handle 2.5" SSD/HDD hard drives.


To transfer video captured from a Blackmagic Production Camera 4K to a mobile SSD, you can directly install the SSD on to the ST4's hard drive tray, and then connect it to a computer to perform editing or color correction on captured video directly. The hard disk can be formatted to be compatible with Mac HFS+ or Windows exFAT.

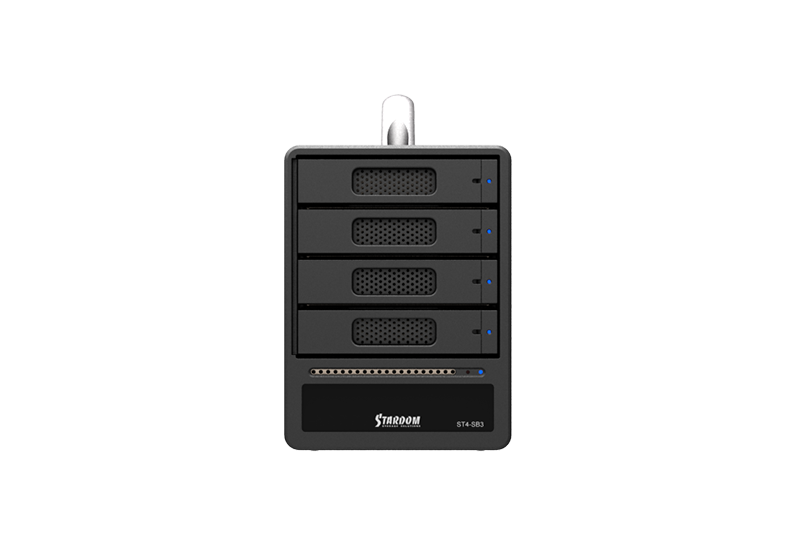

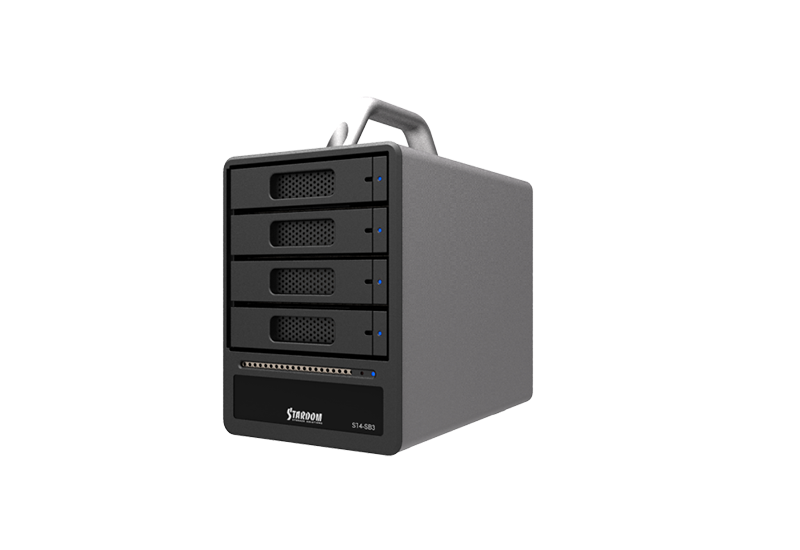

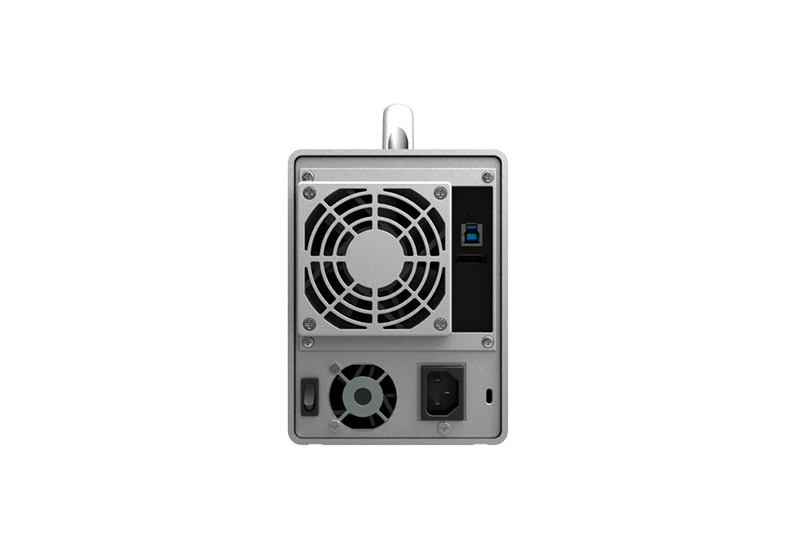

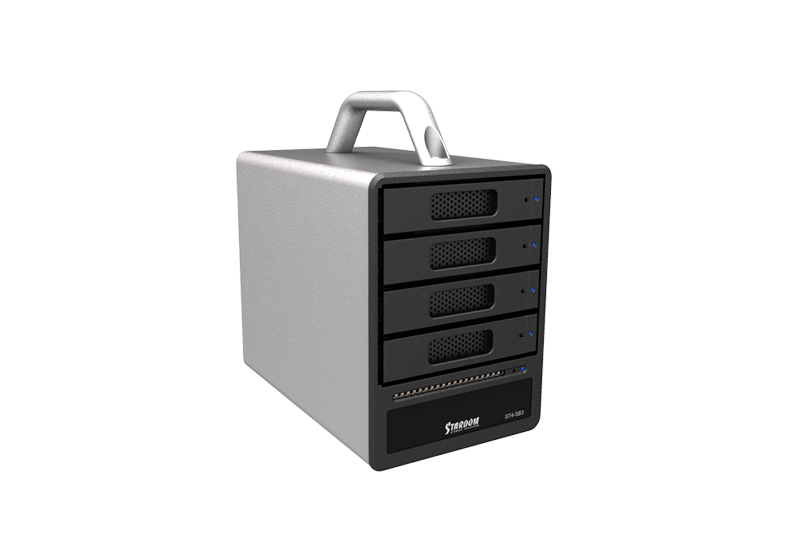

Product View


Model No ST4-SB3
Interfaces USB 3.0 Port ( up to 5 Gbps )
e-SATA Port ( up to 6 Gbps )
Before using the ST4-SB3 e-SATA port, make sure that the host supports the port multiplier function in order for system to identify all the drives.
Compatible Drive 4 x 3.5”/2.5" SATA III HDD/SSD ( up to 6 Gbps )
Support large volume up to 8TB
Storage Mode 4 x Independent ( JBOD )
Operating System
Windows, Mac, Linux
System Monitoring System temperature, Fan failure, Hard drive failure.
Cooling System 8 cm Low noise fan
Electrical and
* Line voltage: 100-240V AC
* Frequency: 50Hz to 60Hz, single phase
* Maximum continuous power: 250W
* Operating temperature: 50° to 95° F (10° to 35° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight Height: 166 mm    Width: 124 mm    Depth: 210 mm    Weight: 4.5 kg
Product Code EAN: 4711132864632      UPC: 884826503842
Carton 4 pcs per carton
Package Accessories * ST4-SB3 x 1  (with removable drive tray enclosed x 4)
* USB3.0 Cable x 1
* e-SATA Cable x 1
* AC Power Cable x 1
* Accessory kit
* User Manual x 1


ST4-SB3 Download

Image Download

ST4-SB3 Question & Answer

  • Q1Which drive format should I choose to format the hard drive in the ST4?

ST4-SB3 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
ST4-SB3HGST3.5" HDDUltrastarHUS724040ALA6404TB
ST4-SB3HGST3.5" HDDUltrastarHUS724040ALE6404TB
ST4-SB3HGST3.5" HDDUltrastarHUS726060ALA6406TB
ST4-SB3HGST3.5" HDDUltrastarHUH728080ALE6008TB
ST4-SB3HGST3.5" HDDUltrastarHUA722020ALA3302TB
ST4-SB3HGST3.5" HDDDeskstarHDS723030ALA6403TB
ST4-SB3HGST3.5" HDDDeskstarHDS723030ALA6403TB
ST4-SB3HGST3.5" HDDUltrastarHUA723030ALA6403TB
ST4-SB3HGST3.5" HDDDeskstarHDS723020BLA6422TB
ST4-SB3HGST3.5" HDDUltrastarHUA722010ALA3301TB
ST4-SB3HGST3.5" HDDDeskstarHDS721010CLA3321TB
ST4-SB3HGST3.5" HDDDeskstarHDS5C1010CLA3821TB
ST4-SB3Seagate3.5" HDDConstellationST3000NM00113TB
ST4-SB3Seagate3.5" HDDBarracudaST32000542AS2TB
ST4-SB3Seagate3.5" HDDBarracudaST32000641AS2TB
ST4-SB3Seagate3.5" HDDBarracudaST2000DL0032TB
ST4-SB3Seagate3.5" HDDConstellationST32000644NS2TB
ST4-SB3Seagate3.5" HDDConstellationST2000NM00112TB
ST4-SB3Seagate3.5" HDDConstellationST2000NM00112TB
ST4-SB3Toshiba3.5" HDD MG03ACA3003TB
ST4-SB3Toshiba3.5" HDD MG03ACA4004TB
ST4-SB3WD3.5" HDDAV-GP VelociRaptorWD10EVDS1TB
ST4-SB3WD3.5" HDDAV-GP VelociRaptorWD15EVDS1.5TB
ST4-SB3WD3.5" HDDBlackWD6402AAEX640GB
