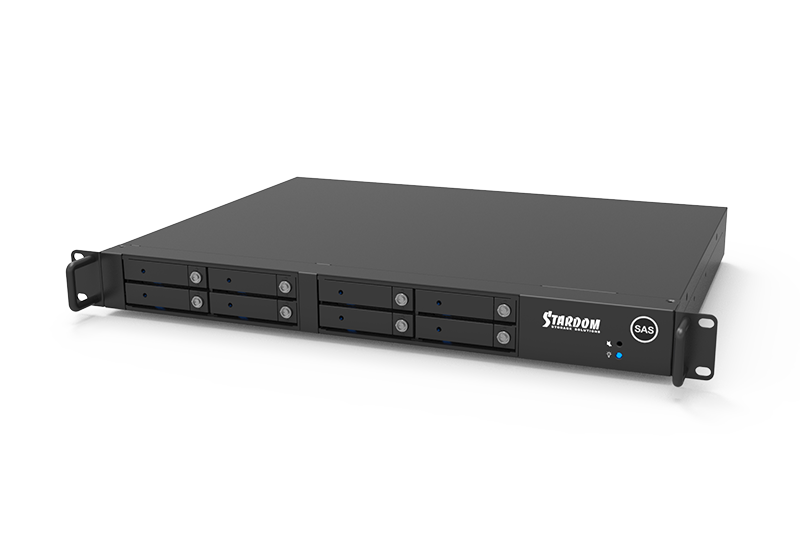

8-Bay 2.5”SATA/SAS HDD/SSD external JBOD Storage

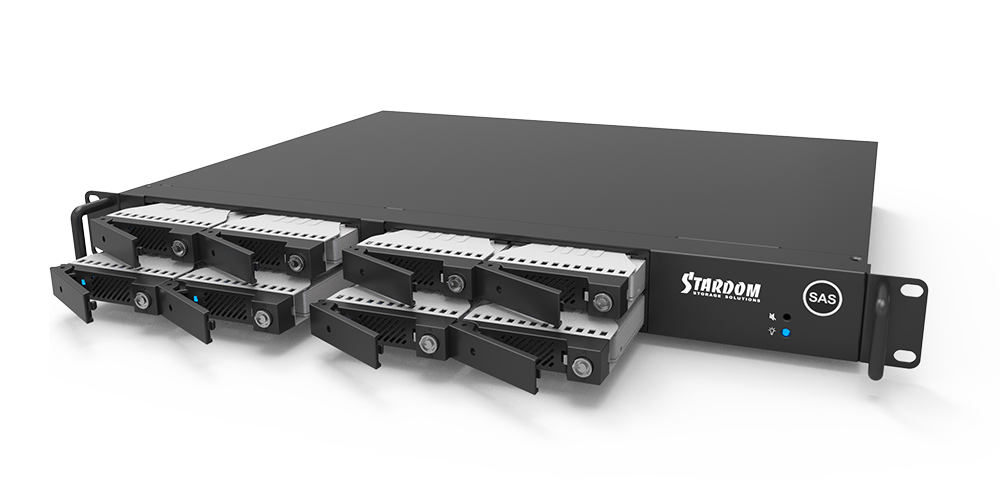

2 Mini-SAS ports (SAS 12G), Hot-Swappable Drive

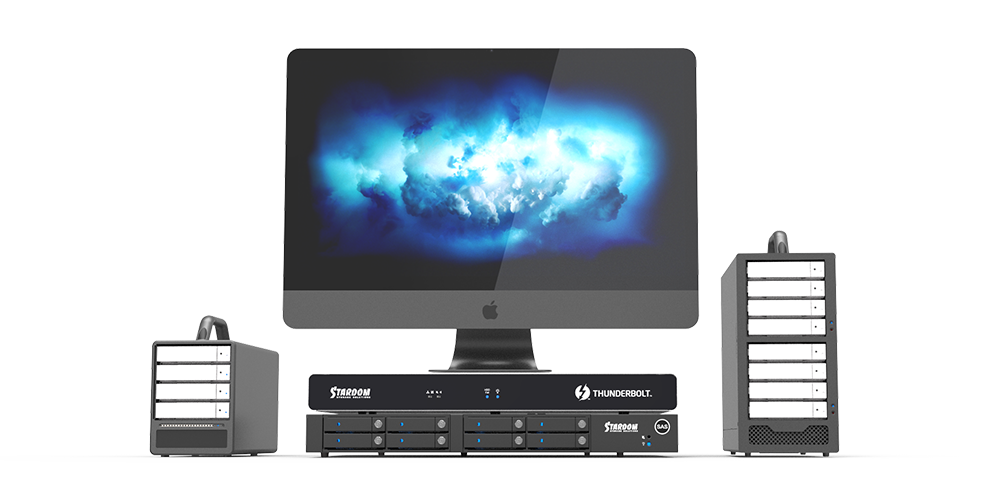

DT8M-U6 provide you Big storage capacity


DT8M-U6 is compatible to most of 2.5" HDD/SSD product which are available in the market, you can use a RAID card for a more perfect storage solution. Its perfect structural design, optimized internal configuration, and enhanced internal hard disk protection with an aluminum alloy casing. This high durability is best suited for professional creative applications and mobile mobility applications.

A variety choice of SFF-8644 to SFF-8644 miniSAS interfaces


DT8M-U6's miniSAS interface supports 2 x SFF-8644 to SFF-8644 miniSAS cable  which includes 8x12Gb/s bandwidths and lets each HDD/SSD gets a whole 12Gb/s bandwidths alone.  It brings you a best efficiency for data transfer for your heavy-duty video editing works!

MCU function provides automatic and manual adjustment of FAN

DT8M-U6 is also designed with the MCU feature which monitors and helps improving its in-chassis system temperature.  While the system temperature rises up to 55 degree-C (131 degree-F), MCU will bump up the fans with full speed; and once system temperature goes down to 50 degree-C (122 degree-F), you could manually adjust fan switch on the rear, MCU would reduce the fan speed down to a half speed for a better green user environment from a less fan noise and lower power consumption.


In addition, if the fan fails or the device temperature is too high, the buzzer will beep and let the user know that the device has failed. The user can turn off or turn on the buzzer through the mute adjustment switch on the back of the back panel.

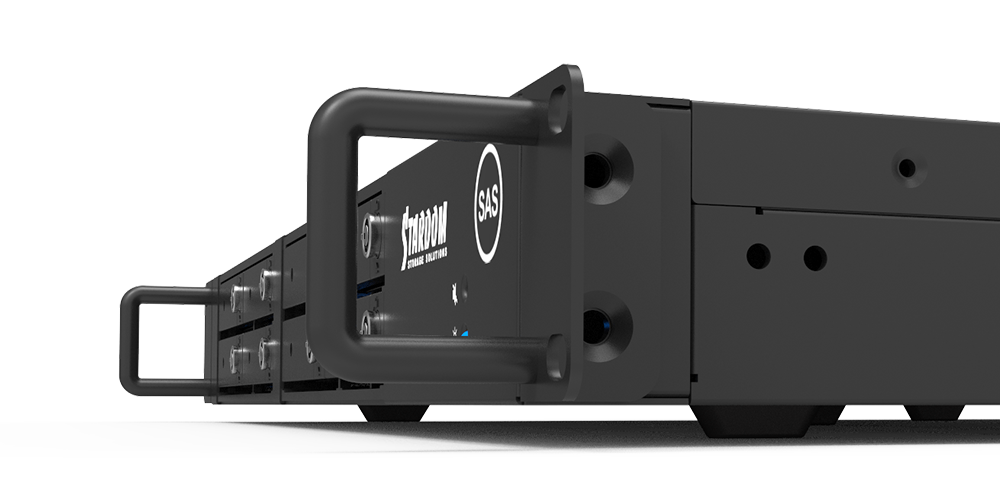

Two die-casting rackmount ears to help moving your DT8M-U6 easily

The two iron die-casting rackmount ears are strong enough for you to move DT8M-U6 easily among your system racks in your server room!

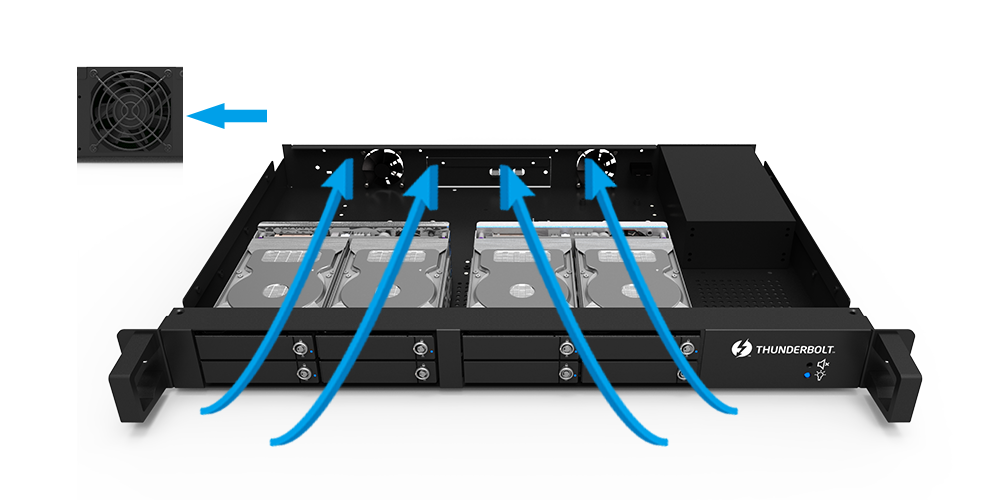

The solid aluminum chassis pluses two powerful low noise Fans


DT8M-U6's solid chassis is made by a thickness aluminum-alloy plate.  And its aluminum housing and the two 4 cm FANs (with safe FAN GUARDs) really help an efficient heat dissipation for your long time use.

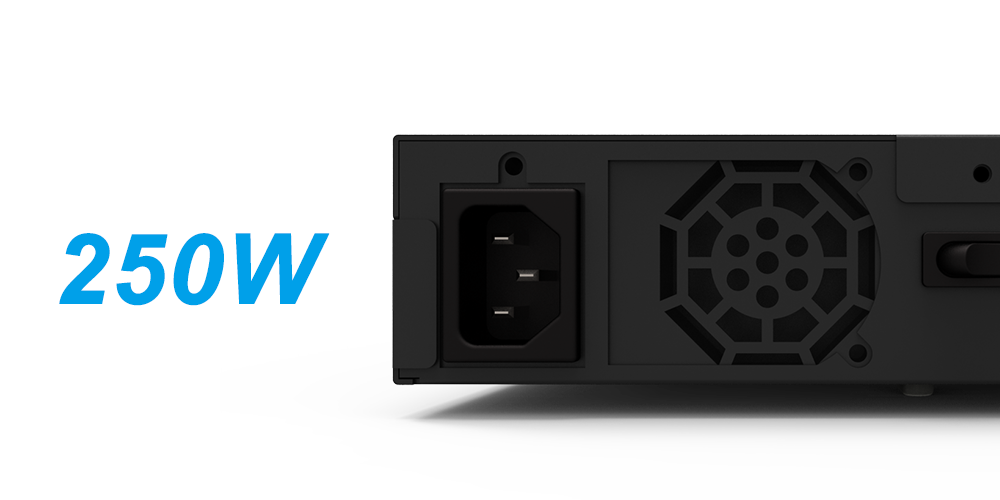

The built-in power supply unit

DT8M-U6 uses conform with safety regulation certified 250W power supply unit which provides a stable and high efficient power output and definitely satisfies the big power consumption from all 8 HDDs.

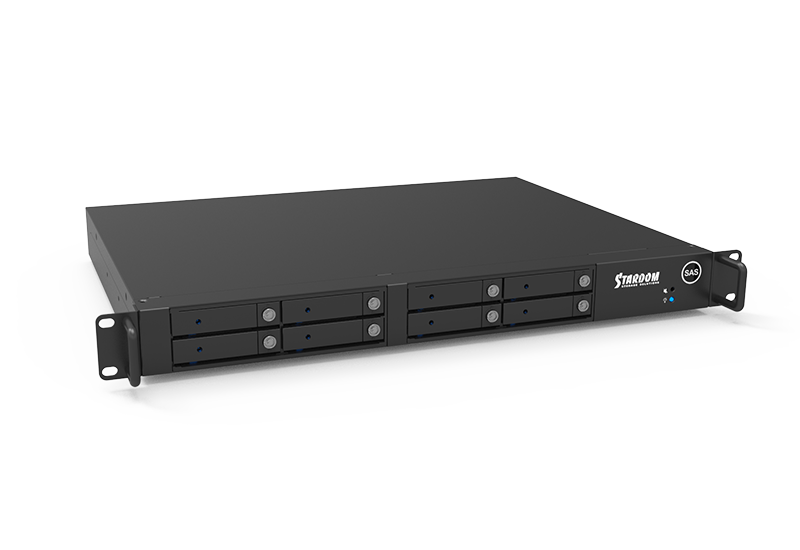

The standard Rackmount chassis

Even though it's a standard 1U-19" rackmount chassis size, DT8M-U6 still has a fashion ID to match your Mac or PC while standing beside it.  It's well protected under its aluminum chassis which also helps dissipating heat too!

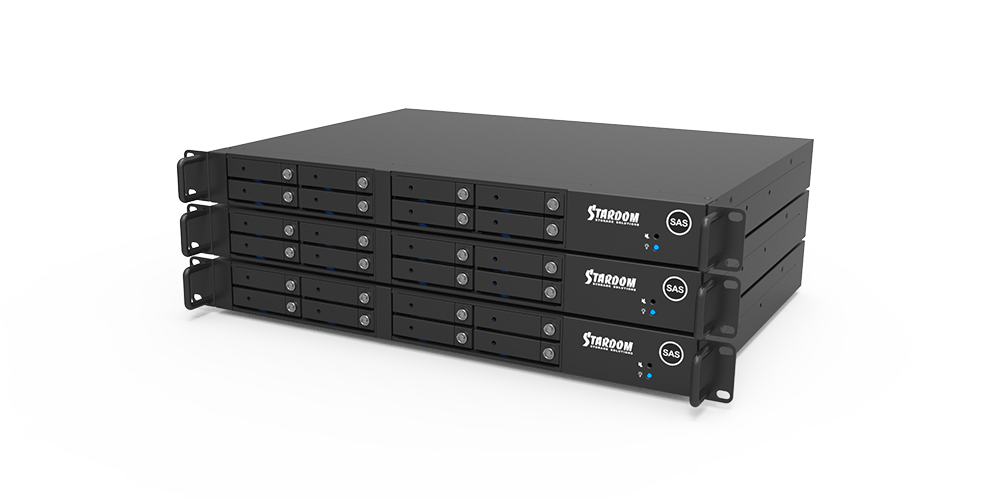

You could pile up them together for space saving

DT8M-U6 is designed for you to pile them up together firmly.  It occupies only for two A4 paper size at your desk if you pile them up together.  And of course, you could mount DT8M-U6 at your server rack too!

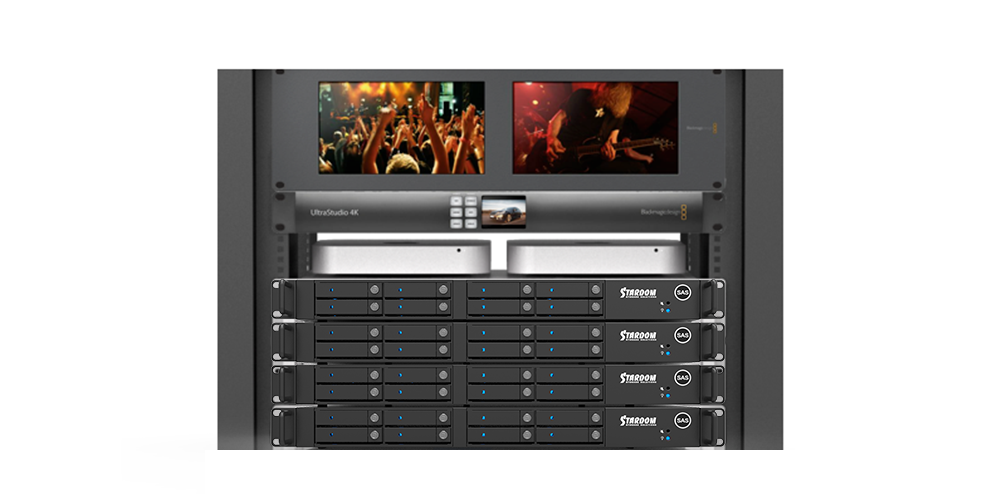

To meet and fit the standard 1U-19" server rack

You could easily install your new DT8M-U6 into your standard 1U-19" server rack for both of server and workstation applications.

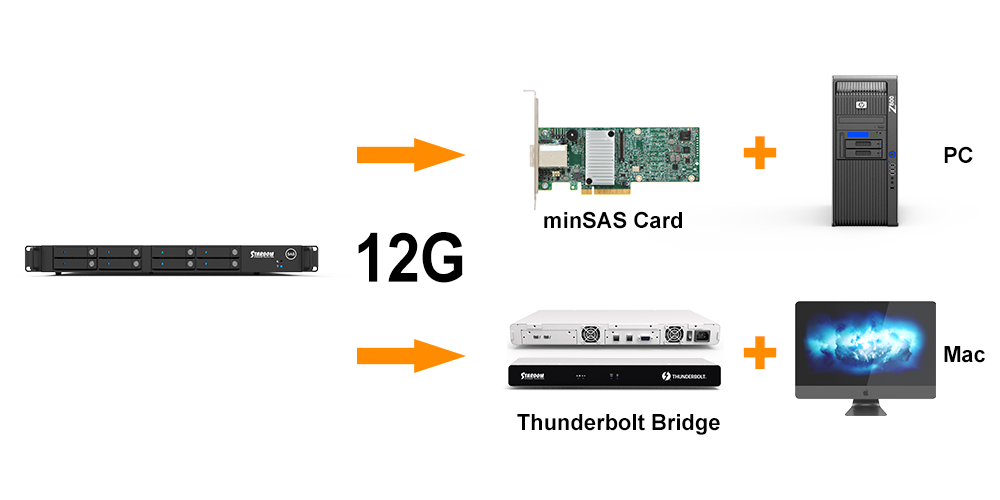

It to fit most of RAID Controller Adapter


Our DT8M-U6's 12Gb/s data transfer rate and JBOD features fits most of your old SAS RAID controller adapter from your former Mac Pro and Windows PC.  And also, you could use our SA2TB3 Docking  or AR0080-TB3 to connect DT8M-U6 to your Mac which supports Thunderbolt 3 interface.


More SA2TB3 product information  >>>>

More AR0080-TB3 product information  >>>>

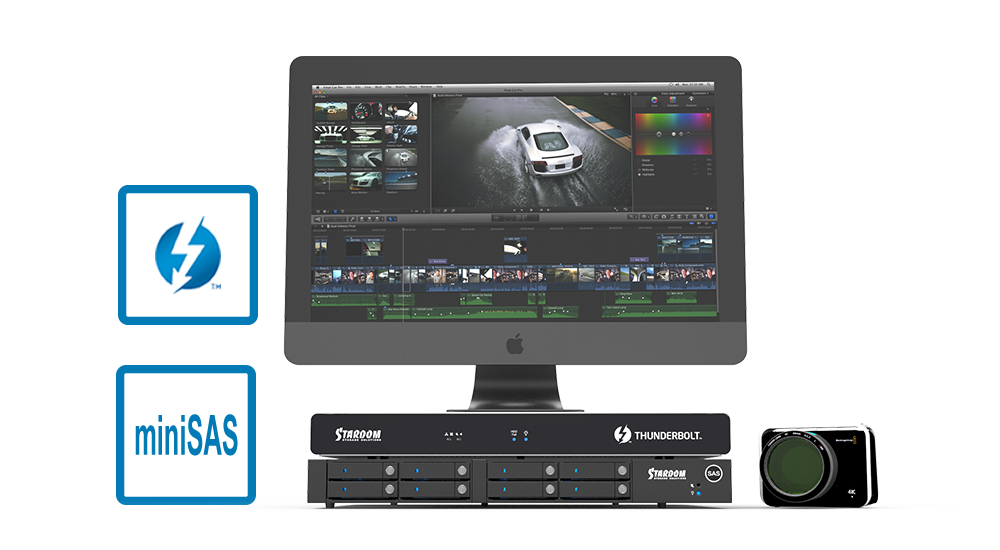

SA2TB3 to help connecting DT8M-U6 to your new Mac Thunderbolt


Thru one new Stardom SA2TB3 docking, you could easily connect DT8M-U6 with a total 8 HDDs to your new Mac Thunderbolt.  This solution also gives you an excellent data transfer rate up to 1500MB/s with its RAID 5 feature which lets you not only enjoy watching your 4K video with no missing frames but also get a perfect data protection for all your data in 8 HDDs.

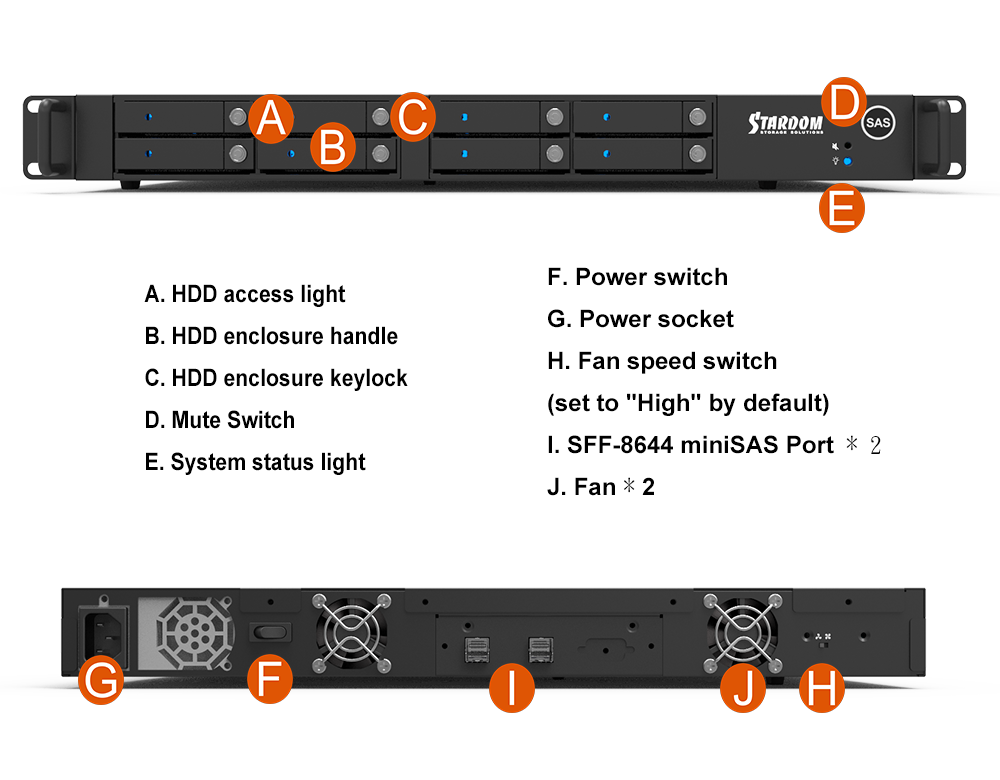

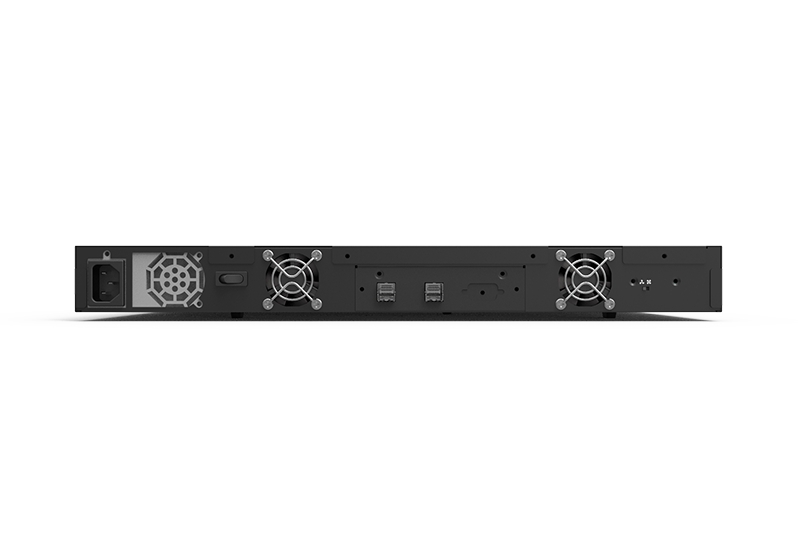

Product View

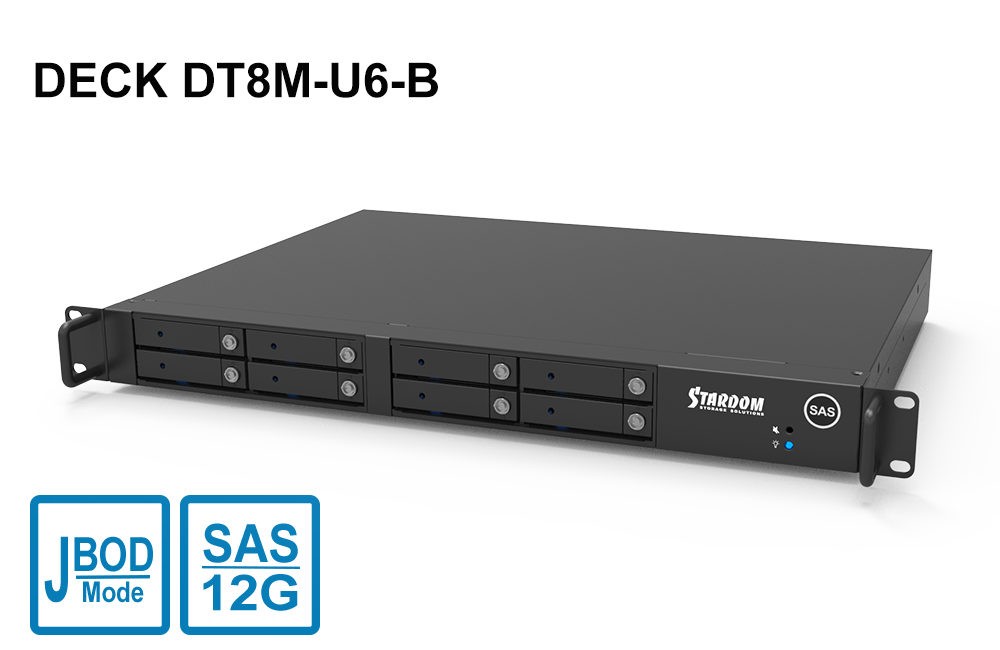

Model No DT8M-U6-B
12 Gbps SFF-8644 miniSAS Port *2
Compatible Drive 8 x  2.5"  SAS( up to 12 Gbps) /SATA HDD/SSD ( up to 6 Gbps )
Certification CE/FCC
Storage Mode JBOD
Operating System
Windows, Mac ,Linux
Cooling System 4 cm Low noise fan x 2
Electrical and
* Line voltage: 100-240V AC
* Frequency: 50Hz to 60Hz, single phase
* Maximum continuous power: 250W
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 113° F (-20° to 45° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight Height: 44 mm   Width: 427 mm    Depth: 326.8 mm
Product Code DT8M-U6-B
EAN Code : 4711132865448
UPC Code : 884826501046
Carton 2 pcs per carton
Package Accessories * DT8M-U6 x 1 ( with removable drive tray enclosed x 8 )
* SFF-8644 miniSAS x2
* Power Cord x1
* Accessory Kit
* Quick Installation Guide x1
