PCI Express (PCIe): The Backbone of High-Speed Interconnect in Modern Computing

Abstract

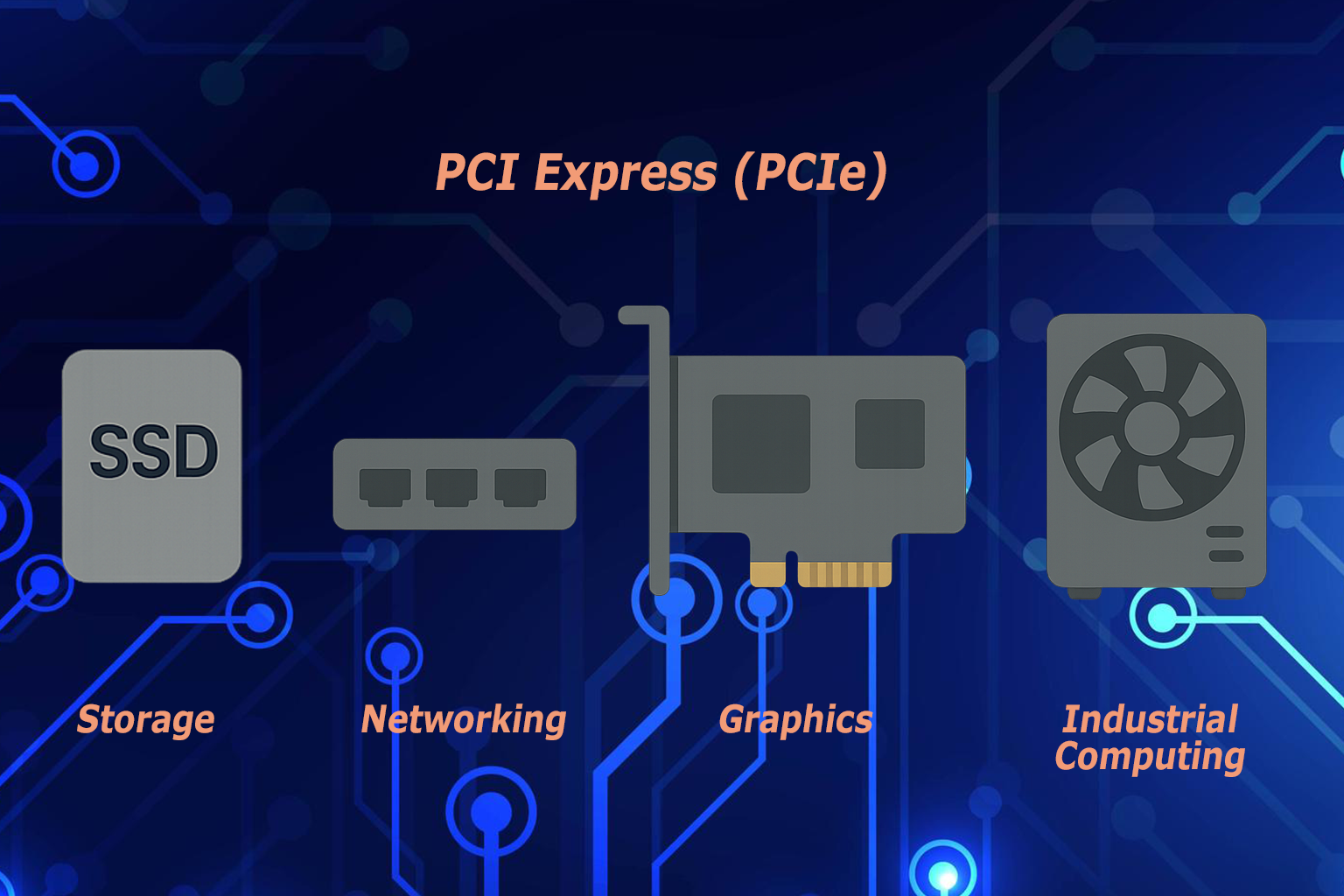

PCI Express (PCIe), officially known as Peripheral Component Interconnect Express, is the foundational high-speed interface standard that underpins modern computing. From consumer desktops to enterprise data centers and AI accelerators, PCIe enables scalable, low-latency, high-throughput communication between critical system components. This white paper explores the PCIe architecture, performance evolution, and its broad spectrum of applications across storage, networking, graphics, and industrial computing.

1. Introduction

In the age of data-intensive workloads—driven by artificial intelligence, cloud computing, high-resolution media, and real-time analytics—systems demand a reliable and efficient internal interconnect. PCI Express (PCIe) has emerged as the industry standard, offering unmatched speed, scalability, and compatibility. Whether connecting NVMe SSDs or powering data center GPUs, PCIe forms the high-speed backbone of system performance.

2. PCIe Architecture and Protocol Overview

2.1 Lane-Based Scalability

PCIe is a high-speed serial interface that transmits data over lanes. Each lane consists of two differential signaling pairs (transmit and receive), enabling full-duplex communication.

Common configurations:

● x1 (1 lane)

● x4 (4 lanes)

● x8 (8 lanes)

● x16 (16 lanes)

This flexible architecture allows PCIe to scale bandwidth according to application requirements.

2.2 Generational Evolution

PCIe Generation Bandwidth per Lane x4 Total x16 Total Year Introduced
PCIe 3.0 ~1 GB/s ~4 GB/s ~16 GB/s 2010
PCIe 4.0 ~2 GB/s ~8 GB/s ~32 GB/s 2017
PCIe 5.0 ~4 GB/s ~16 GB/s ~64 GB/s 2019
PCIe 6.0 (future) ~8 GB/s (with PAM-4) ~32 GB/s ~128 GB/s 2022+

2.3 Backward and Forward Compatibility

PCIe maintains strong backward compatibility across generations, allowing newer cards to operate in older slots (at reduced speed) and vice versa—simplifying system upgrades and extending hardware lifespans.

3. Key Advantages of PCIe

● High Bandwidth: Supports increasingly demanding workloads with high throughput.

● Low Latency: Minimal protocol overhead ensures rapid data exchange.

● Power Efficiency: Advanced power management for both active and idle states.

● Modular Scalability: Lane-based design adapts to small or large form factor devices.

● Ecosystem Support: Universally adopted across platforms and architectures.

4. Real-World Applications of PCIe

4.1 NVMe Storage

PCIe is the essential transport layer for NVMe SSDs, enabling ultra-fast storage solutions:

PCIe Gen 4 NVMe drives achieve up to 7,000 MB/s read speeds.

NVMe RAID enclosures utilize PCIe lanes to deliver redundant, high-throughput storage.

4.2 GPU and HPC Acceleration

PCIe x16 interfaces are standard for graphics cards, including professional GPUs used in AI/ML training, scientific computing, and 3D rendering.

High-performance computing (HPC) clusters rely on PCIe for GPU-to-CPU communication with minimal latency.

4.3 High-Speed Networking

PCIe supports a range of network interface cards (NICs):

10GbE, 25GbE, and 100GbE cards use PCIe x8/x16 slots for enterprise networking.

Emerging SmartNICs and DPUs leverage PCIe Gen 4/5 for programmable data plane acceleration.

4.4 Industrial and Embedded Systems

FPGA accelerators, frame grabbers, and data acquisition boards connect via PCIe for deterministic, real-time performance in automation and manufacturing.

5. PCIe in Evolving Computing Paradigms

5.1 Data Centers and Cloud Infrastructure

In modern hyperscale infrastructure:

PCIe links CPUs, SSDs, GPUs, and AI accelerators.

PCIe switches enable resource disaggregation in composable data centers.

NVMe-over-Fabrics (NVMe-oF) extends PCIe performance across networks.

5.2 AI and Machine Learning

AI workloads require massive memory bandwidth and low-latency GPU interconnects. PCIe 4.0/5.0 enables:

Fast data pipelines from storage to compute

Multi-GPU scaling in AI servers

6. Future Outlook: PCIe 6.0 and Beyond

PCIe 6.0 introduces PAM-4 signaling and Forward Error Correction (FEC) to double bandwidth while maintaining signal integrity. It targets:

AI/ML clusters

PCIe-based CXL (Compute Express Link)

Next-gen composable infrastructure

As system demands rise, PCIe continues to evolve as the universal, high-speed backbone of performance computing.

7. Conclusion

PCI Express has become an indispensable interconnect for virtually every performance-critical application. Its modular design, forward scalability, and ecosystem integration make it the go-to interface standard—from laptops and gaming rigs to industrial controllers and AI supercomputers.

With each new generation, PCIe redefines the boundaries of speed and connectivity, ensuring its role as the core enabler of future computing innovation.


2025-07-31
