Support 1 x 2.5” SATA III HDD/SSD External Storage



Provide 1 x USB 3.2 Gen 2 Type-C interface, 18W USB PD and 1x DP1.1a Mini DisplayPort, and hot-swappable.









Product Features:



1. Newly designed 2.5” external storage, suitable for Mac、PC and Android Phone



2. USB 3.2 Gen 2 interface, transmission speed up to 10Gbps speed



3. Support USB Type-C interface, plug and play



4. Support 2.5 screwless tray, extractable and hot swappable



5. Hard disk access indicator for quick checking the data access status



6. Three colors (Red/Grey/Black) of stunning appearance and aluminum structure for elegant and fast heat dissipation



7. MT1-B31P+ provides more application



Provides 18W (9V/2A) / 15W (5V/3A) / 12W (12V/2A) USB power delivery



Provides Mini DisplayPort for users to expand the monitor



Newly designed 2.5” external storage, applicable for Mac、PC and Android Phone


Newly designed MT1-B31P+ external storage provides three colors for user’s preference. It has stylish design and can be placed and matched next to your Mac and PC. It built in USB 3.2 Gen 2 interface, and applicable for Mac, PC and Android phone. It just needs one cable and can offer the various applications simultaneous for transferring images, data and charging, is the most advanced and versatile interface.

MT1-B31P+ provides mini DisplayPort for users to connect the displayed screen, that is compatible for the existing DisplayPort devices which can be connected to the DVI、HDMI and VGA screen through the adapter cable.



Support USB Type-C interface, plug and play



The newly designed MT1-B31P+ support USB Type-C interface and complies with USB 3.2 Gen 2 specification. It is convenience for Users that can directly use the USB cable to plug the MT1-B31P+ and play with Mac and PC, without distinguish the front and back side of USB cable.

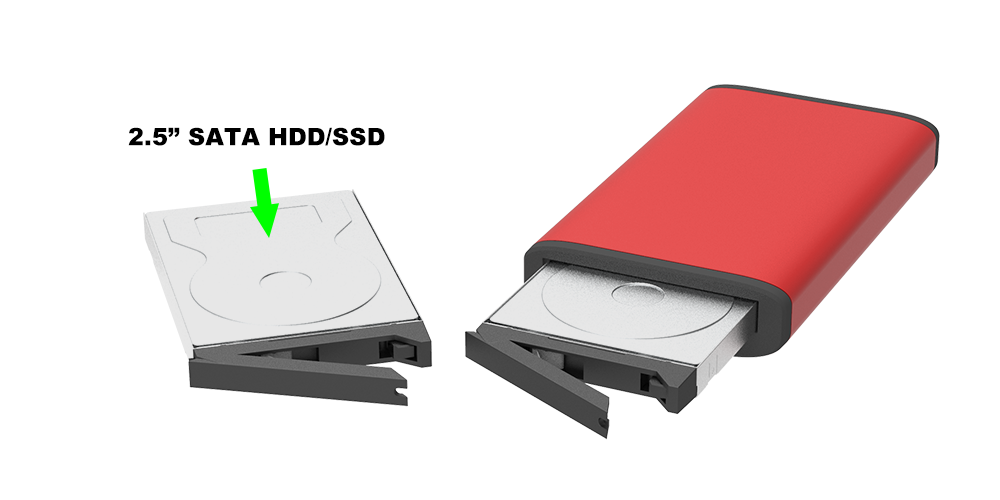

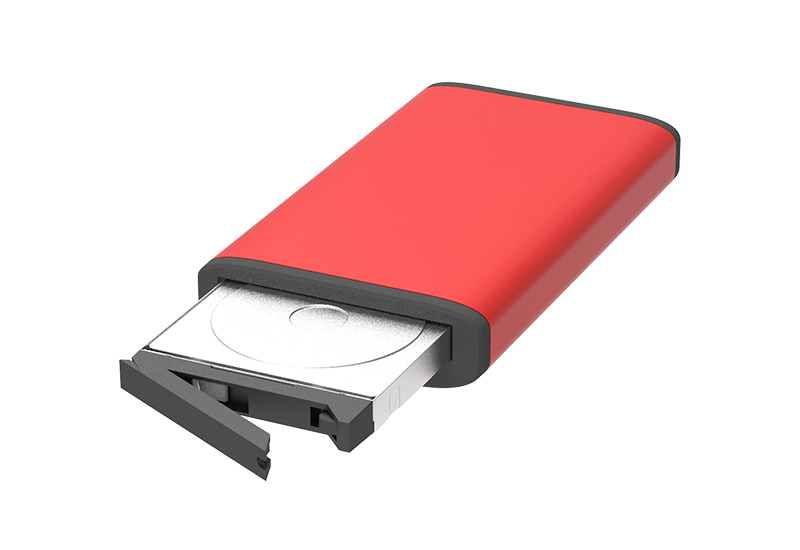

Support 2.5” hard disk screwless tray, extractable and hot swappable



MT1-B31P+ is equipped with an easy to install tray, can support the newest 2.5” SATA HDD/SSD, and has the sturdy aluminum housing to protect your hard disk. The MT1-B31P+ combines the advantages of convenience and plug and play, can replace the tray easily and protect the hard disk securely placed and not be easily pulled out.

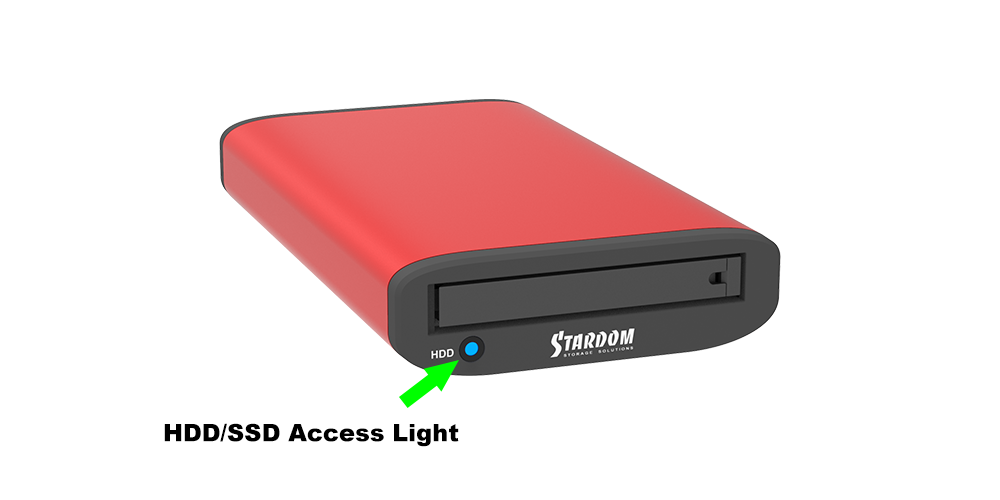

The Hard disk access indicator for quick data access status



MT1-B31P + provides the hard disk access indicator. It will flash and change when the user transmits data, and that allow users to check the data access status quickly.

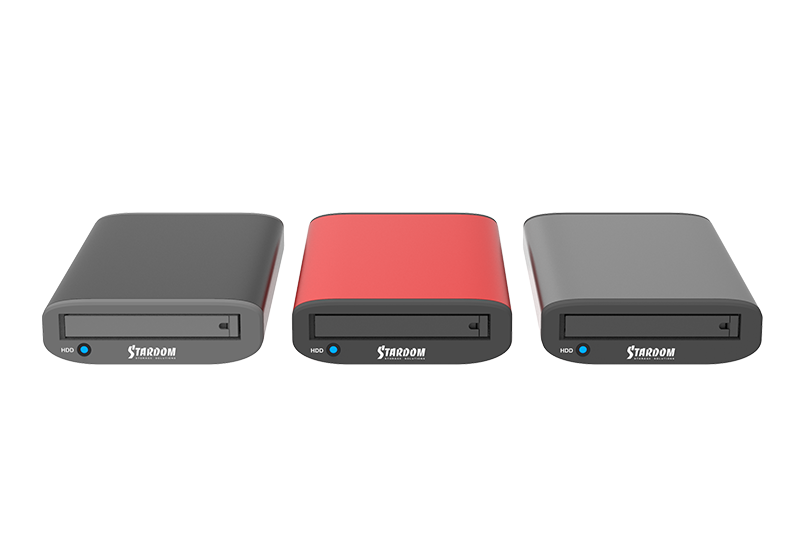

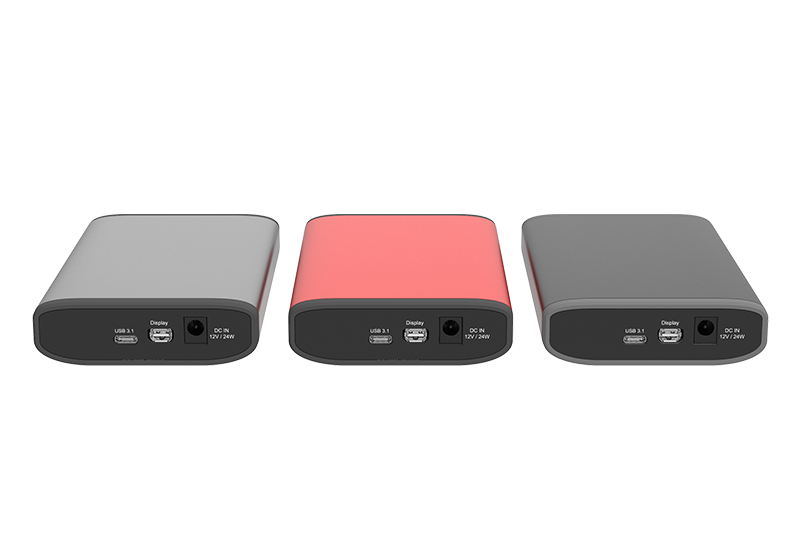

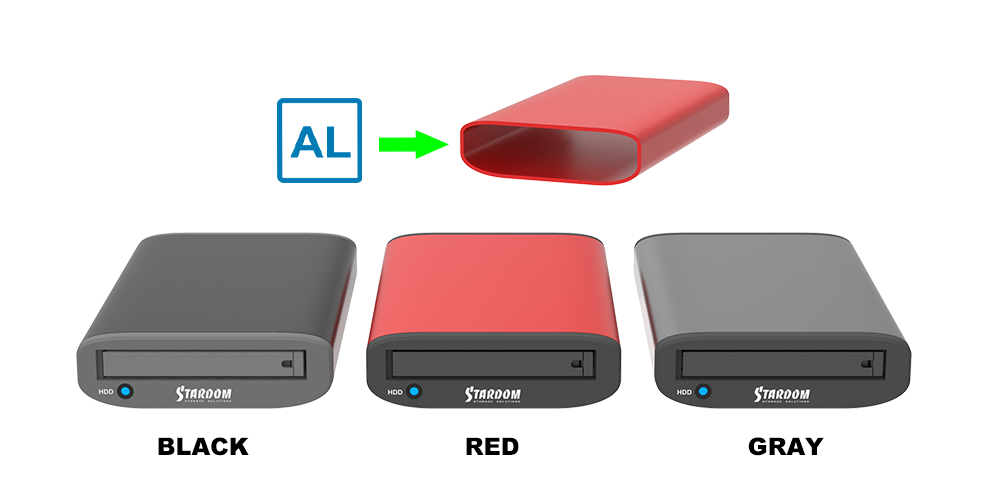

Three stunning appearance colors (Red/Black/Grey), aluminum structure design for elegant and fast heat dissipation



Newly MT1-B31P+ provides three colors for user’s preference. It has the sturdy aluminum construction design, which can withstand larger impacts than ordinary plastic products, and really protect your hard disk in various usage conditions. It is also for fast heat dissipation, and keeps the hard disk working stable and normal under the long time hours.

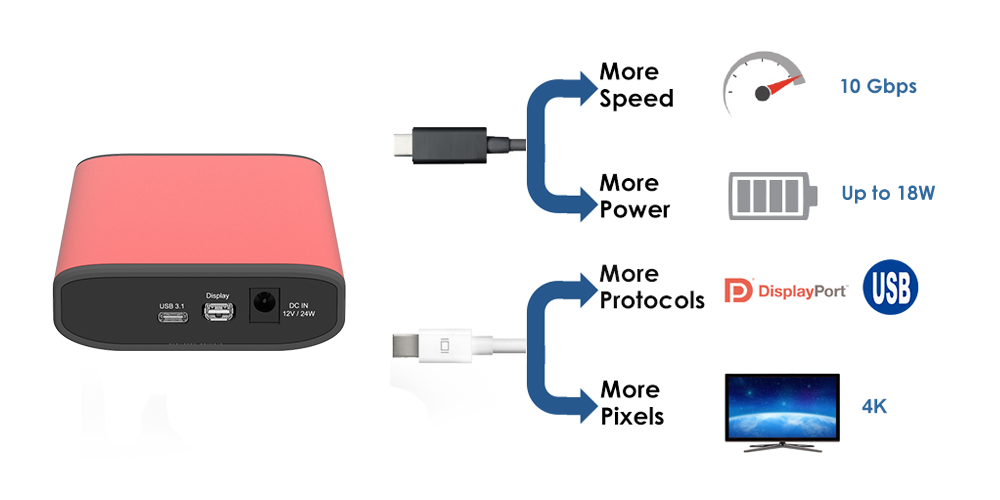

MT1-B31P+ provides more applications



MT1-B31P+ just needs one cable and can offer the various applications simultaneous for transferring images, data and charging, is the most advanced and versatile interface.



MT1-B31P+ provides mini DisplayPort for users to connect the displayed screen, that is compatible for the existing DisplayPort devices which can be connected to the DVI、HDMI and VGA screen through the adapter cable.

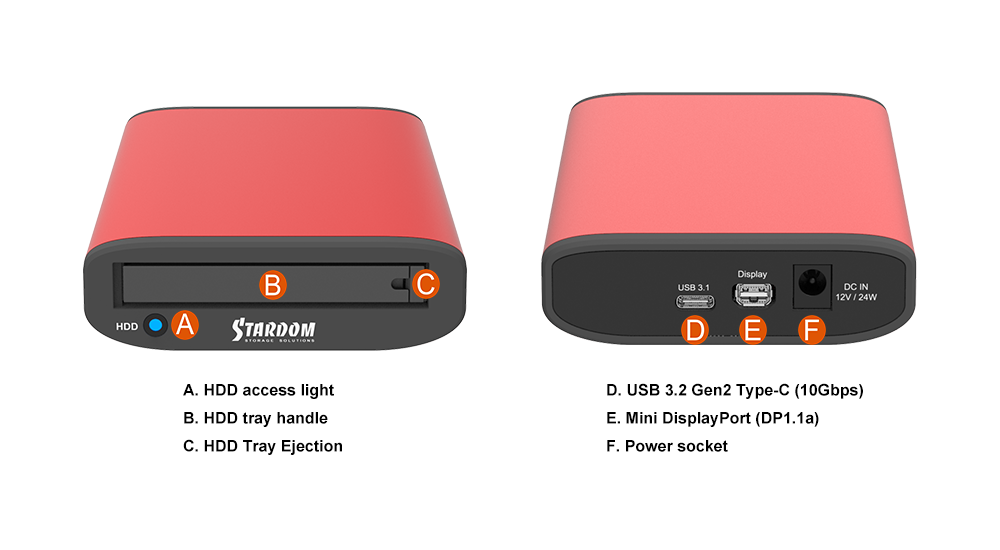

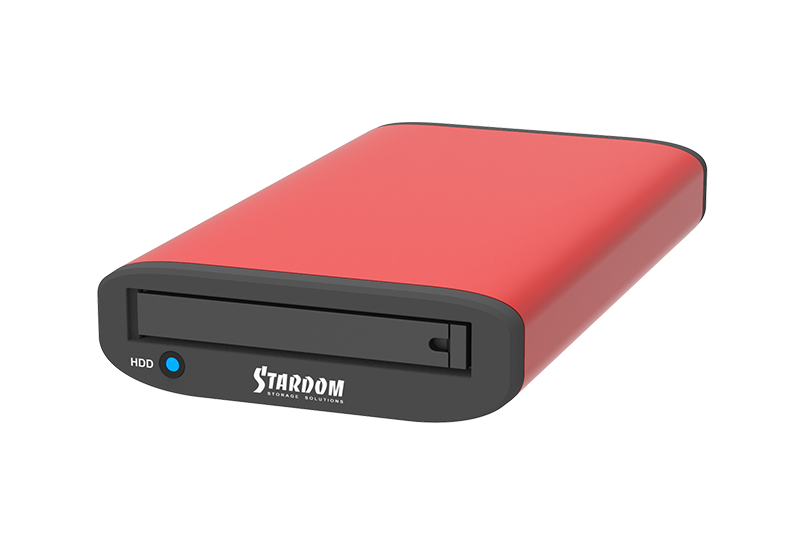

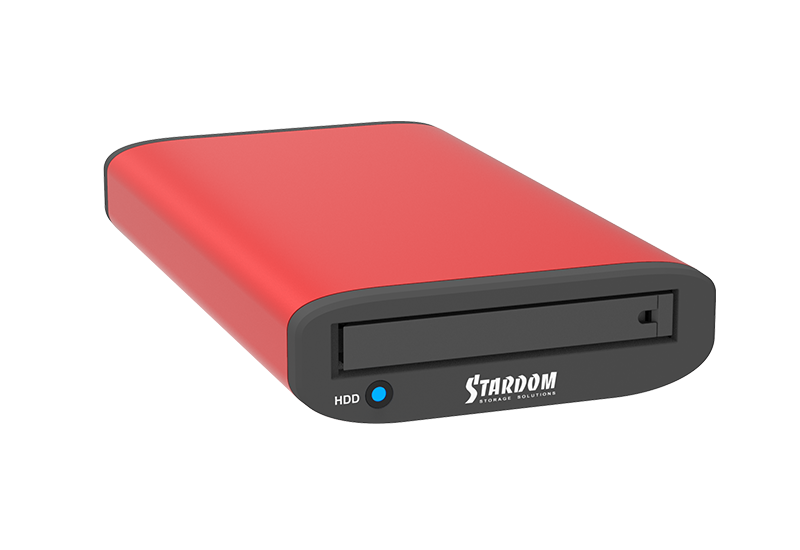

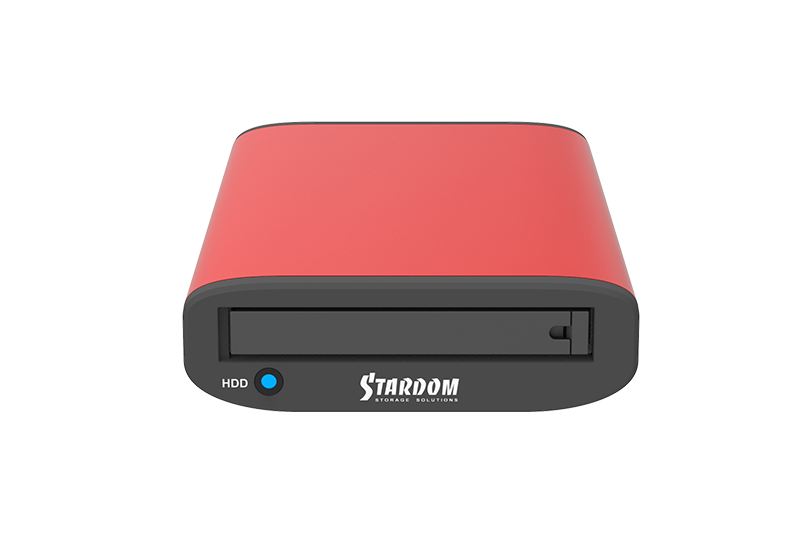

Product View

Specification



Model No MT1-B31P+ (Red/Black/Gray)
Interfaces USB 3.2 Gen 2 ( up to 10 Gbps ),
Support 18W (9V/2A) / 15W (5V/3A) / 12W (12V/2A) USB Power Delivery.
DP 1.1a Mini DisplayPort x 1
Compatible Drive 1 x 2.5" SATA III HDD/SSD ( up to 6 Gbps ) (9.5mm)
Certification CE/FCC
Storage Mode JBOD - Independent Mode
Operating System
Support
Windows 7 or above, OS X 10.10 or above, Linux, Android
Electrical and
Operating
Requirements
* Line voltage: 100-240V AC
* Frequency: 50Hz to 60Hz, single phase
* Maximum continuous power: 24W
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing

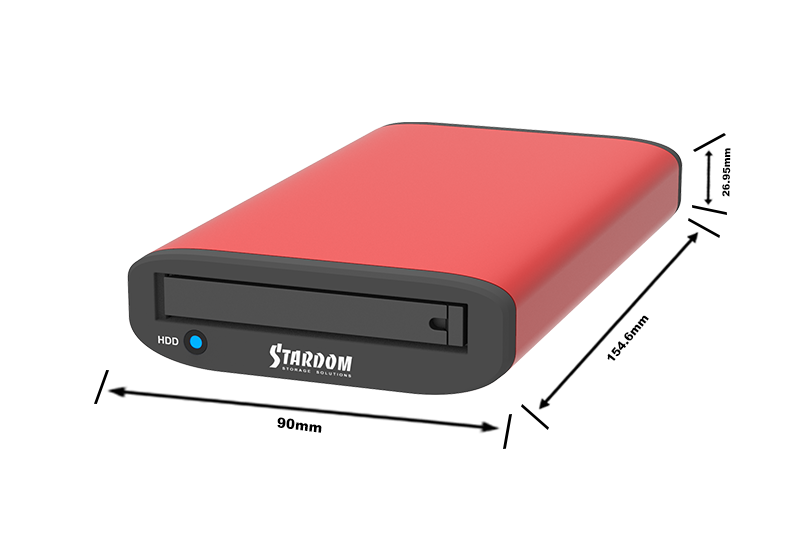

Size and Weight Height : 26.95mm Width : 90 mm Depth : 154.6 mm
Product Code MT1-B31P+ (Red)
EAN : 4713227440868
UPC : 884826505426

MT1-B31P+ (Black)
EAN : 4713227440875
UPC : 884826505433

MT1-B31P+ (Gray)
EAN : 4713227440882
UPC : 884826505440
Carton 10 pcs per carton
Package Accessories * MT1-B31P+ x 1
* USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1(with E-Mark)
* AC Power Adapter x 1
* Power Cable x 1
* Accessory kit
* Quick Installation Guide




Related Products





i310-B31

i310-B31+

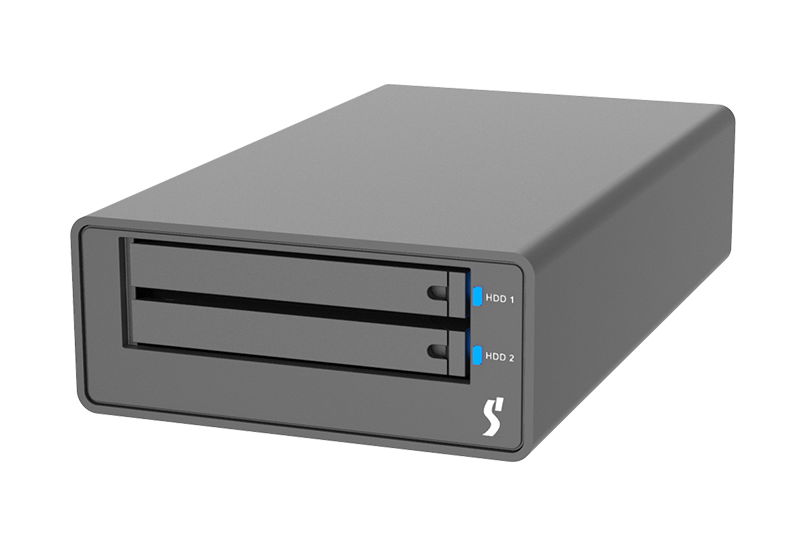

MR2-B31
