Overview



The ST4R-B32 is a 4-bay USB-C DAS featuring two independent 2-drive hardware RAID groups.



Drives 1–2 form G1 and Drives 3–4 form G2. Each group can be independently configured as RAID 0, RAID 1, BIG, or JBOD and accessed simultaneously through a single USB-C connection.



A typical configuration is:



● G1 RAID 0 — Active Projects



● G2 RAID 1 — Protected Project Data



With USB 3.2 Gen 2x2 up to 20Gb/s, support for up to 30TB per drive, hot-swappable trays, system monitoring, and Easy Data Vault support, the ST4R-B32 provides flexible local storage for creative, workstation, and SOHO workflows.



Why ST4R-B32?



● Two Independent RAID Groups



Run two separate 2-drive hardware RAID groups in one enclosure.



● Different RAID Modes



Configure G1 and G2 independently as RAID 0, RAID 1, BIG, or JBOD.



● Two Storage Roles



Use each RAID group for a different workflow without adding a second enclosure.



● One USB-C Connection



Access both RAID groups simultaneously through one host connection.

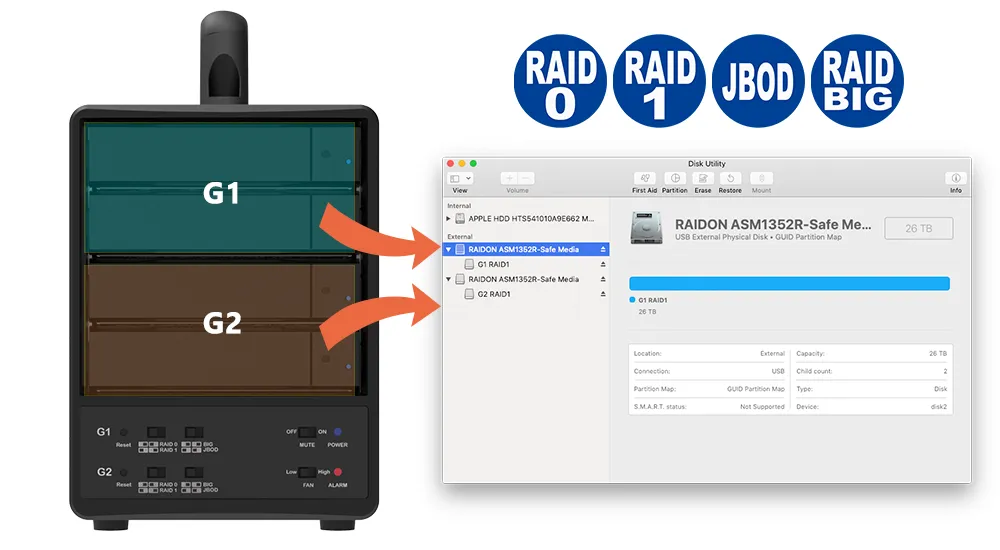

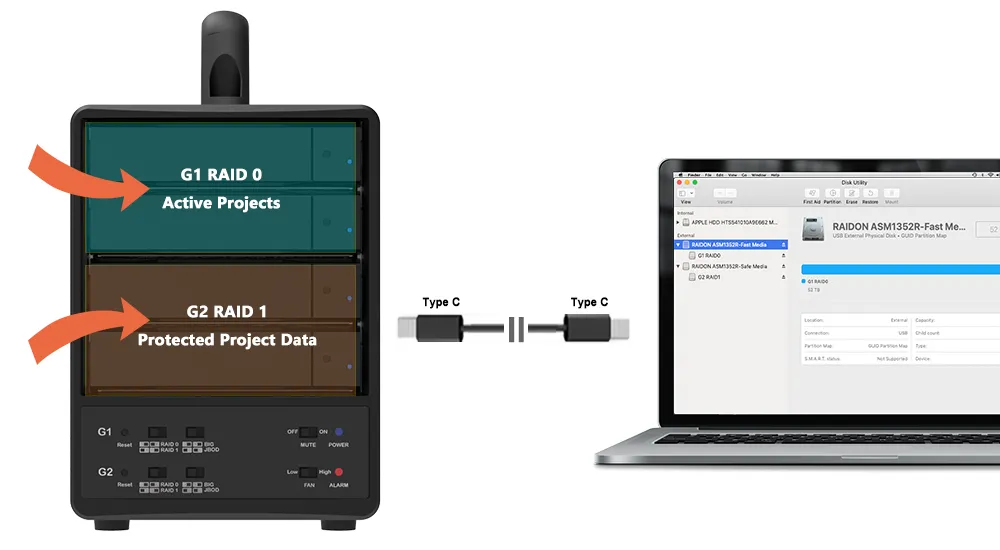

Dual RAID Architecture



One System. Two Independent Storage Groups.



RAID Group 1	RAID Group 2
Drive 1 + Drive 2	Drive 3 + Drive 4
RAID 0	RAID 1
Active Projects	Protected Project Data



G1 and G2 can each be independently configured as RAID 0, RAID 1, BIG, or JBOD.



Both groups are accessible through the same USB-C connection.



Typical Single-Array 4-Bay RAID vs. ST4R-B32



Typical Single-Array 4-Bay RAID	ST4R-B32
Four drives operate as one RAID array	Two independent 2-drive RAID groups
One primary RAID configuration	Different RAID modes for G1 and G2
Designed around one storage pool	Designed around two storage roles
One primary workflow	Multiple storage workflows



ST4R-B32 is designed for users who need multiple storage workflows from one 4-bay DAS rather than one large RAID array.



Key Features

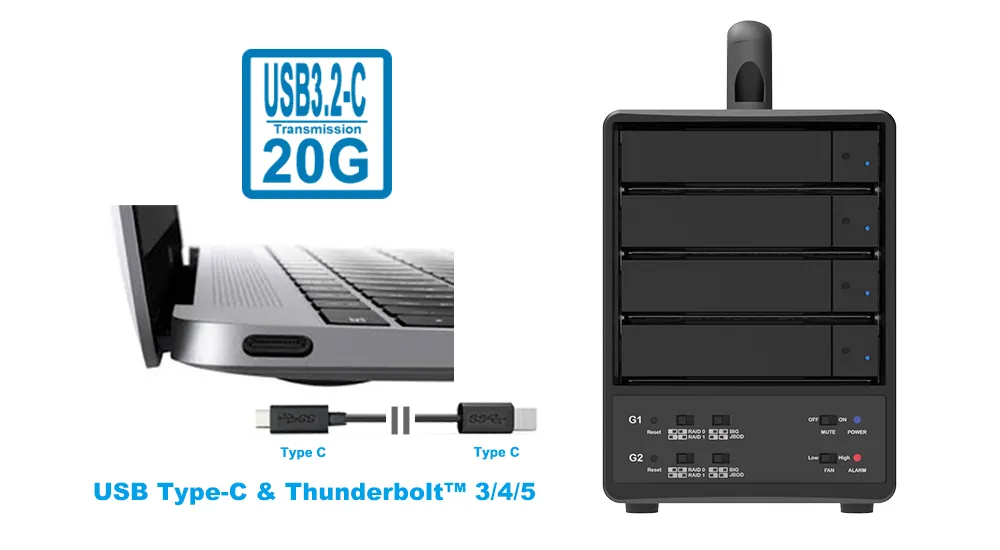

1. USB 3.2 Gen 2x2 — Up to 20Gb/s



Supports up to 20Gb/s bandwidth through a compatible USB 3.2 Gen 2x2 host port.

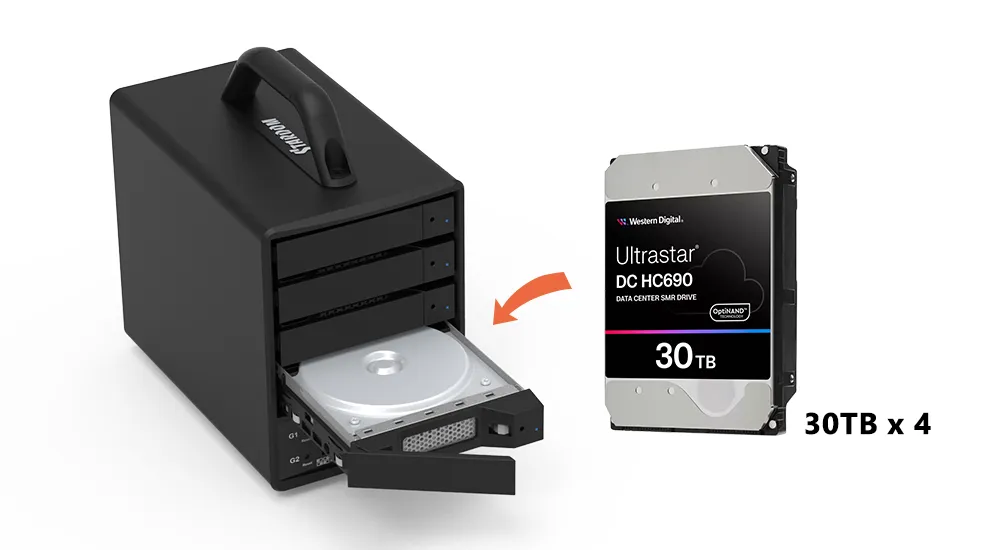

2. Up to 120TB Raw Capacity



Supports SATA HDDs up to 30TB per drive, providing up to 120TB raw capacity with four drives.

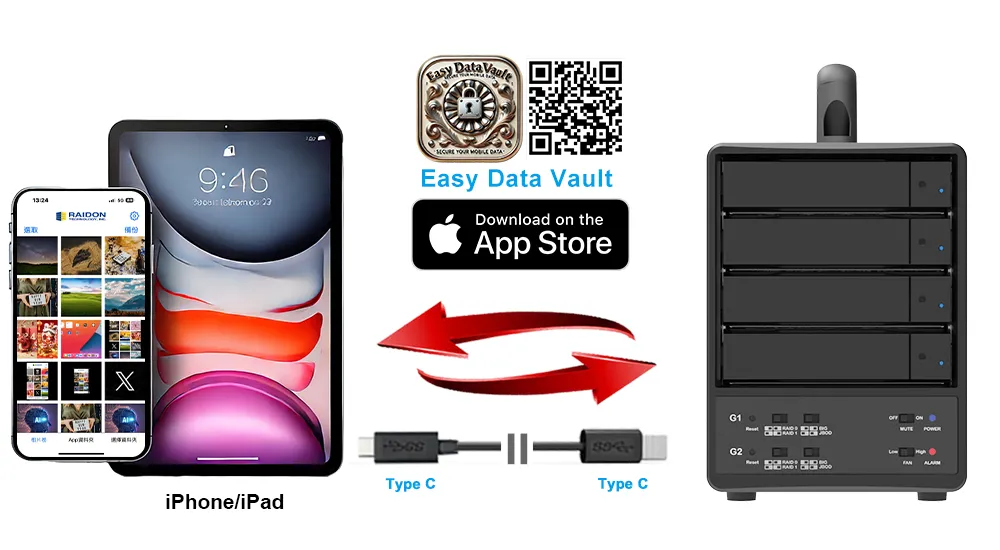

3. Direct iPhone & iPad Backup



Easy Data Vault supports direct photo and video backup from compatible USB-C iPhone and iPad devices.



Both RAID volumes can be recognized when formatted as exFAT on supported devices.

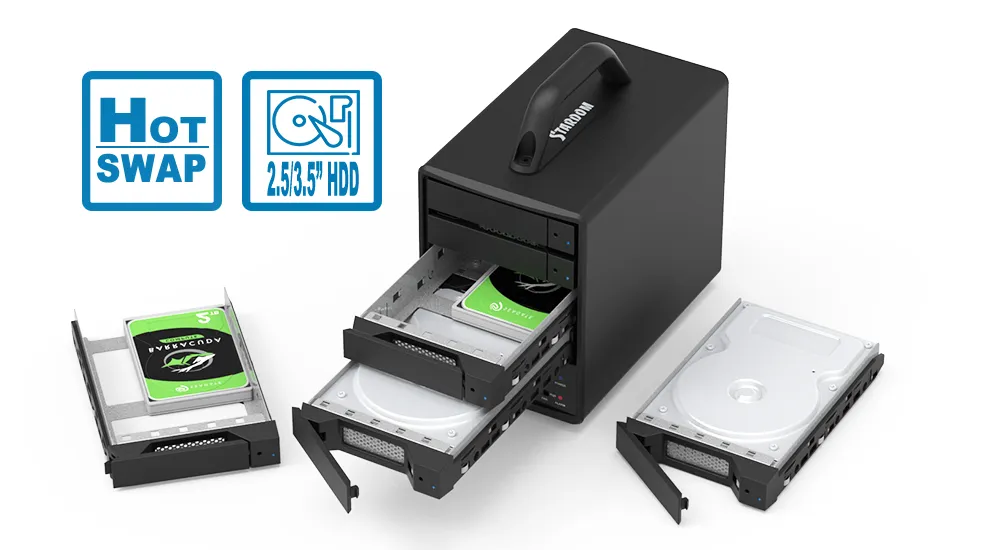

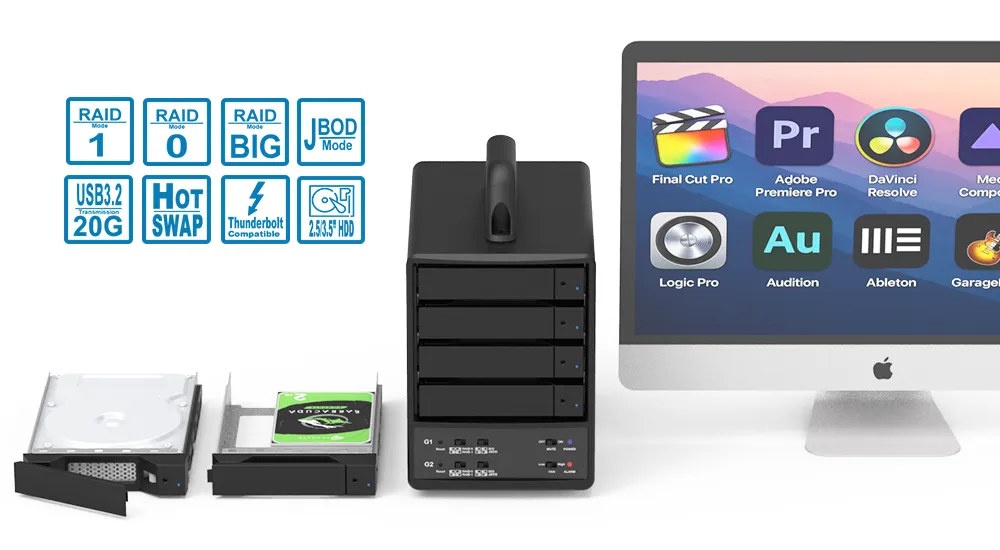

4. Lockable Hot-Swap Trays



Supports four 3.5-inch or 2.5-inch SATA HDDs/SSDs with front-access lockable trays.

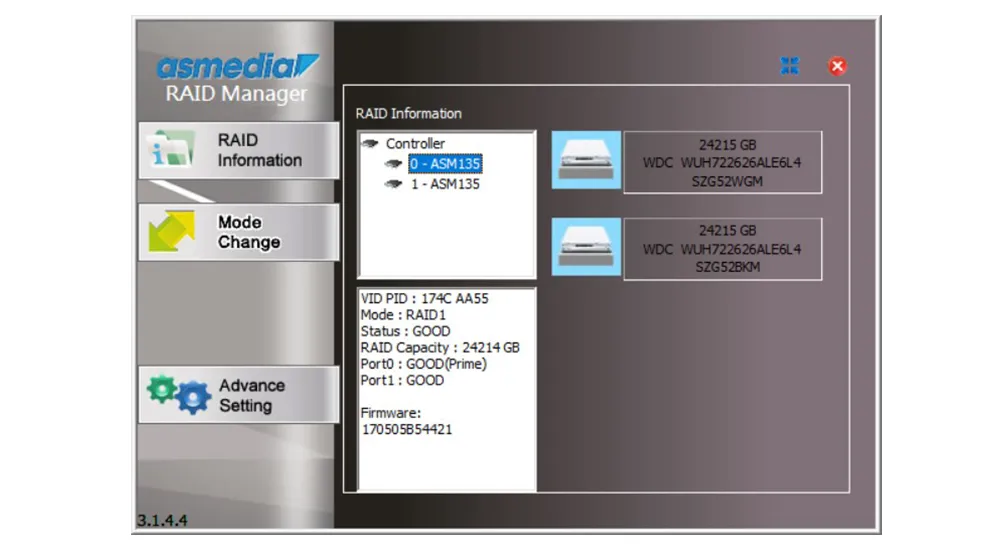

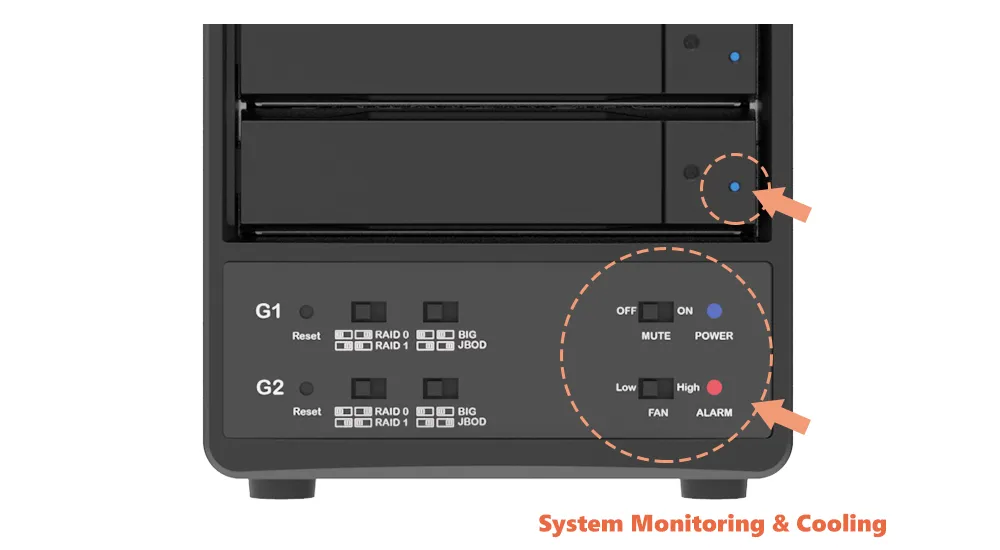

5. System Monitoring



Monitor drive and RAID status, rebuild progress, event logs.

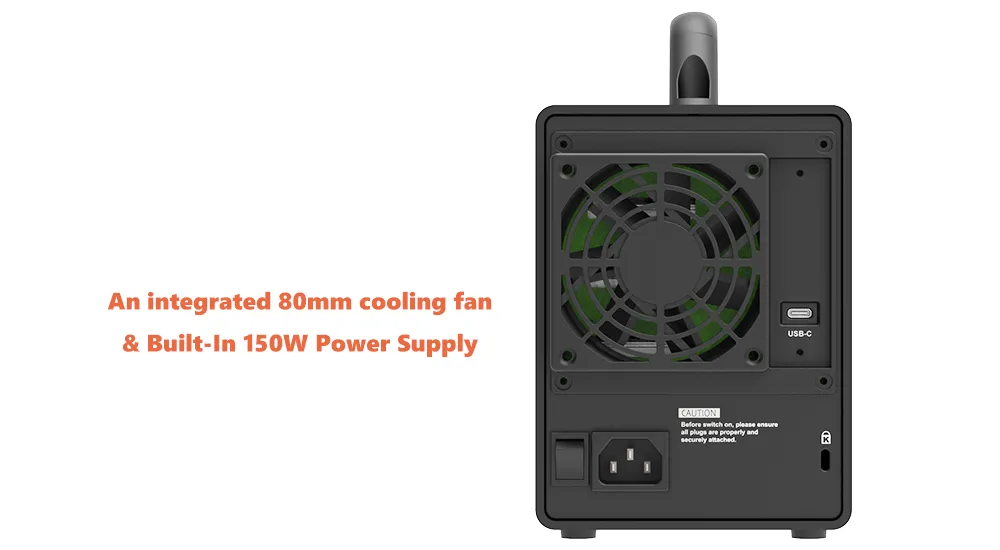

6. Active Cooling



Integrated 80mm fan with High / Low speed settings.



7. Built-In 150W PSU



Supports AC 100–240V input without an external power adapter.

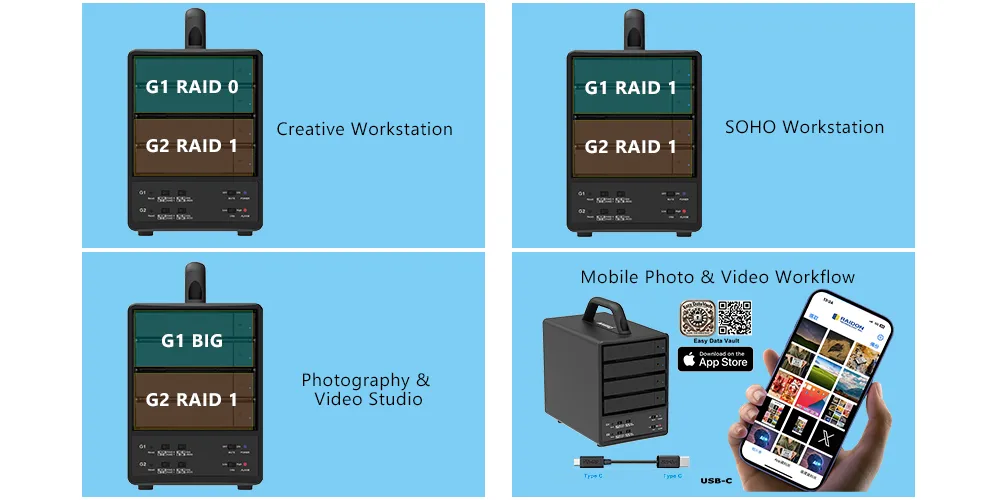

Common Deployment Applications



1. Creative Workstation



G1 RAID 0



Active Editing Workspace



G2 RAID 1



Protected Project Data



Use performance-oriented working storage and protected project storage in the same enclosure.



2. Photography & Video Studio



G1 BIG

Import & Media Library



G2 RAID 1

Completed Project Data



Keep different stages of the production workflow separated within one storage system.



3. SOHO Workstation



G1 RAID 1

Business Data



G2 RAID 1

Secondary Local Data



Maintain two independently managed storage groups for different business workloads.



4. Mobile Photo & Video Workflow



Use Easy Data Vault with compatible USB-C iPhone and iPad devices for direct photo and video backup.



RAID Modes



Mode	Best For	Note
RAID 0	Performance / active projects	No redundancy
RAID 1	Protected data	Single-drive redundancy
BIG	Combined capacity	No redundancy
JBOD	Independent drives	No redundancy



RAID is not a substitute for backup. Maintain a separate backup of important data.



Product Positioning



ST4R-B32 is built for workflows that need more than one storage role from a single 4-bay DAS.



Run active project storage, protected data, media libraries, or secondary local storage side by side—each with its own RAID configuration and accessible through one USB-C connection.



One Enclosure.

Two Storage Roles.

Built for Modern Workflows.



Frequently Asked Questions (FAQ)



Q1. What RAID modes are supported?



A: Each RAID group supports RAID 0, RAID 1, BIG, and JBOD.



Q2. Does ST4R-B32 support RAID 5 or RAID 10?



A: No. ST4R-B32 uses two independent 2-drive RAID groups.



Q3. Can G1 and G2 use different RAID modes?



A: Yes. For example, G1 can use RAID 0 while G2 uses RAID 1.



Q4. Can both RAID groups be accessed simultaneously?



A: Yes. Both groups can be accessed through the same USB-C connection.



Q5. What happens if one RAID group is rebuilding?



A: The other RAID group can remain accessible while one group is rebuilding. Performance may vary during simultaneous operations.



Q6. What is the maximum capacity?



A: Up to 30TB per drive, providing up to 120TB of raw capacity.



Q7. Can different drive capacities be used?



A: Yes, but usable RAID capacity may be limited by the smaller drive within each group.



Q8. Can Easy Data Vault recognize both RAID groups?



A: Yes. Dual-volume recognition is supported when both volumes are formatted as exFAT on compatible USB-C iPhone and iPad devices.



Q9. Does USB-C automatically provide 20Gb/s?



A: No. The host must specifically support USB 3.2 Gen 2x2 20Gb/s.



Q10. Is RAID 1 the same as backup?



A: No. RAID 1 protects against a single-drive failure but does not replace a separate backup.

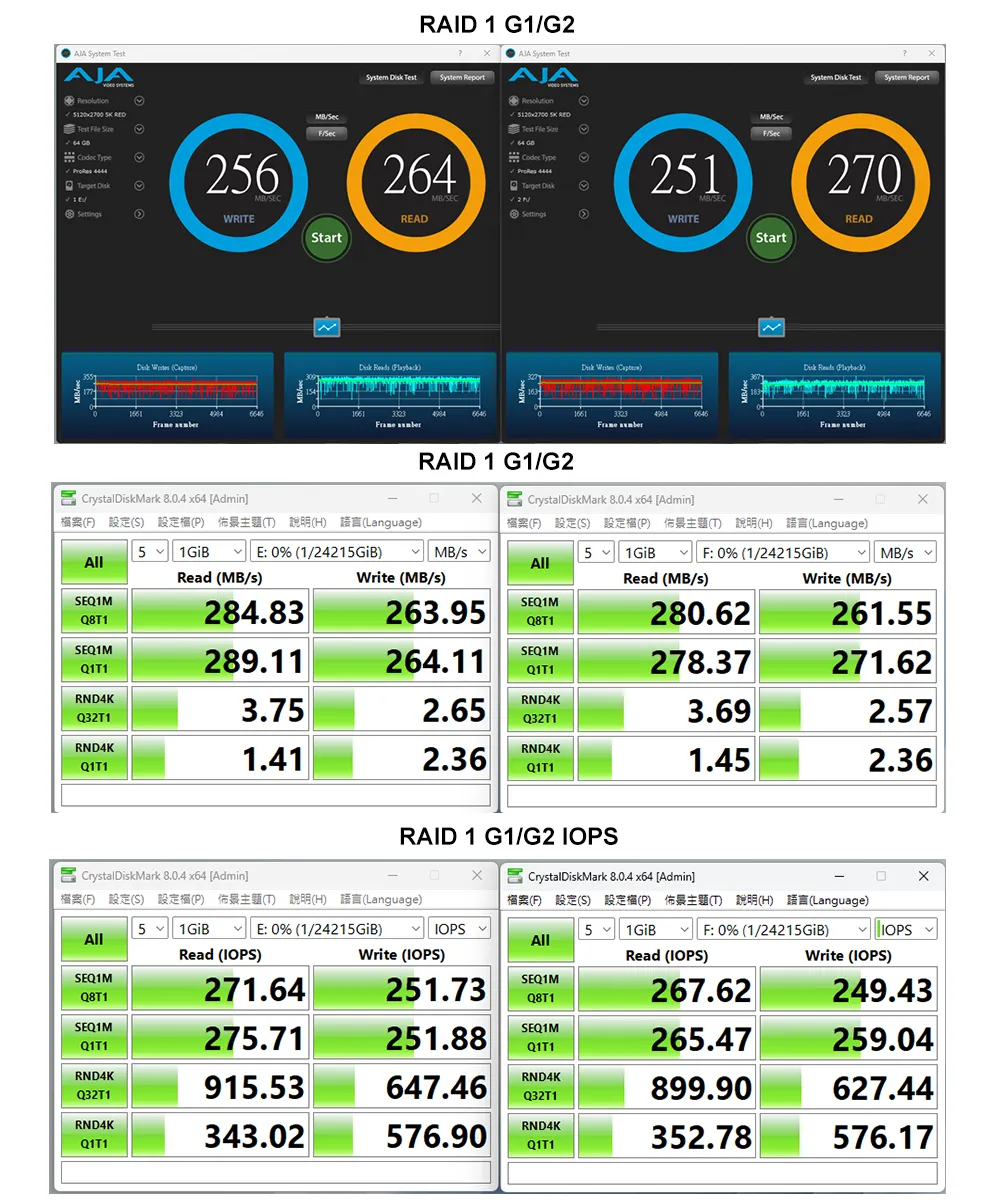

Performance test result for reference. The test result will vary depend on the test environment.

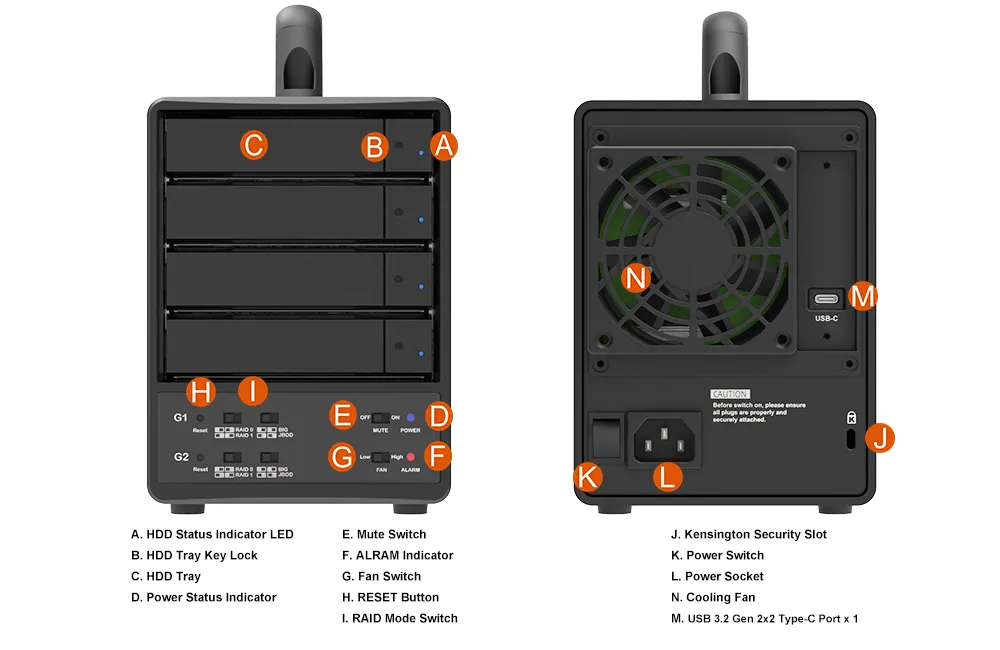

Product View
