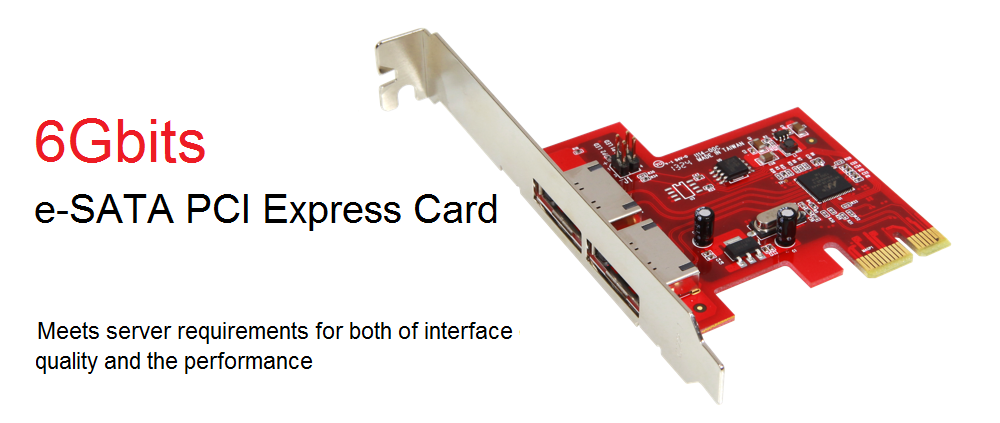

The Stardom ES2-P2 SATA III PCI Express Adapter helps connecting your server to stoprages thru the high efficient eSATA host interface. ES2-P2 has two eSATA ports which provides not only the proven quality but also its 6.0Gb/s high data transfer rate for your server.
Easy for Installation with no hassle
ES2-P2 can be easily adapted into most of motherboards with most popular Operating Systems, Mac / Win 8 / Win 7 / Linux, with no any driver requirement. You just install it into your system, and it then works with almost no maintenant cost.
Notice: You would need a driver while your ES2-P2 is working with Win XP or Win 2003 Server Operating Systems.

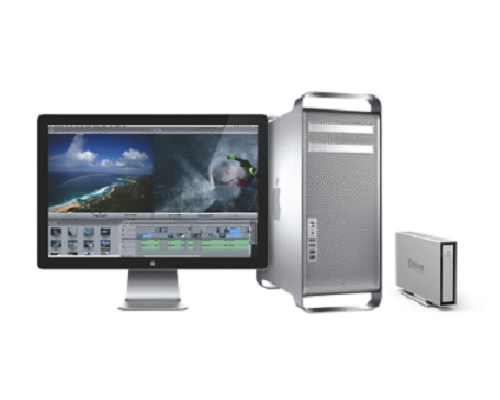

Stardom i310 with a SA2-P2 helps pulling up performance for for 3.5" HDD
ES2-P2 performs 380MB/s data transfer rate which is way better that that of 3.5" HHD's. You would satisfy its performance that what others could reach around 220MB/s from their 3.0Gb/s protocol limitation. And all Stardom i310 family products provide eSATA port for you!

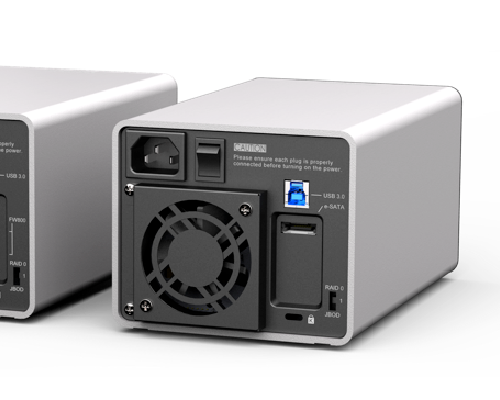

One SA2-P2 connects two ST2-SB3 products
EA2-P2 provides two eSATA ports for two ST2-SB3 products. You could use one ST2 with RAID 1 mode for protecting your important data, and the second ST2 with JBOD to miximize your storage capacity and the flexibility in managing your 4 HDDs.

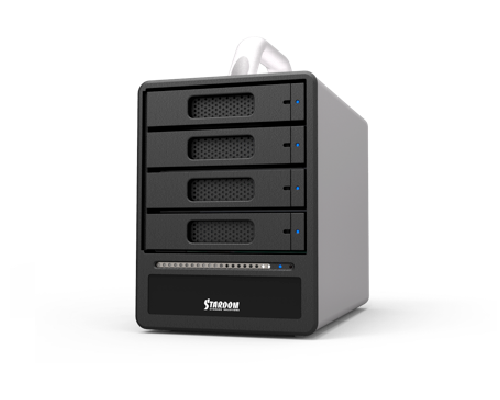

ST4-SB3 with a SA2-P2, only one eSATA cable supports up to 4 HDDs
Since ES2-P2 supports multiplier function, it connects 4 HDDs thru only one eSATA cablefor the help to minimize the cable management works! Abd if your Stardom ST4-SB3 is equiped with one ES2-P2, you could easily leverage all 4 HDDs at one time with almost no hassle in cabling.
.png)
ES2-P2 can only laverage for at most 4 HDDs
Though ES2-P2 supports two eSATA ports, it can only leverage for at most 4 HDDs at one time. One ES2-P2 is unable to support one ST8-S3P or two ST4-SB3 products. If you need 5 or 5 more HDDs for your daily use, we would recommend one Stardom SJ20-x8 Adapter or two ES2-P2 Adapters.
★PCIe Gen2 1xLane Host Adapter
★Two e-SATA ports
★Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
★Supports Native Command Queuing (NCQ)
★Low Profile PCIe Form Factor
★Supports Hardware RAID 0, RAID 1, JBOD [ Port Multiplier ]
★64bit / 32bit Windows 8, Win7, Vista, 2008, 2012, Linux and Mac 10.x built-in AHCI inbox driver support, no additional driver required,Supports Windows XP / 2003 driver
