Safety and Efficacy of both the best RAID X storage device




Data Transfer Performance and Data Correction



DX4-TB2 supports 4 pieces of 2.5" HDD/SSD.  You could set 4 of them with RAID X mode which still protects your data from two defective disks at the same time.  It's just like what RAID 6 mode can do for you and even with a better data protection feature than that of RAID 0 mode.  And also, you could get the same data transfer rate as what RAID 0 or RAID 5 provide you.  DX4-TB2 not only provides you an excellent data protection but also a good data transfer performance.





The Special Features:



1. Thunderbolt 2.0 brings you an extreme high data transfer speed.



2. Transmission performance than the USB 3.1 to be about 2 times faster.



3. Its RAID X feature provides you a RAID 6 level data protection and RAID 0 data transfer efficiency.



4. Its Background REBUILDING feature lets you keep a stable data transfer efficient even though it's at REBUILDING WORKS.



5. Double Tray Lock designs helps reducing the DEGRADED RAID happening from extracting HDD/SSD Trays accidently!

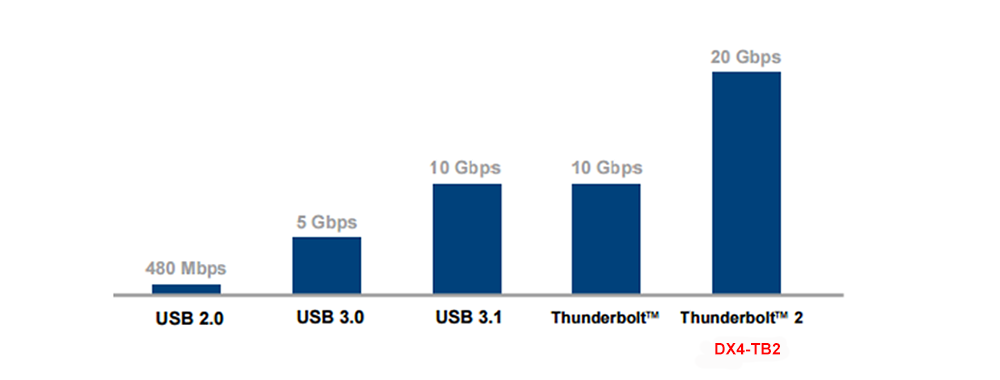

Thunderbolt 2.0 brings you an extreme high data transfer speed

DX4-TB2 supports Thunderbolt 2.0 (TB2) interface for an extreame high data transfer speed.  And both of the two TB2 ports are equipped with a up to 20Gb/s data transfer rate which is 4 times faster than USB3.0 ,2 times faster than USB3.1 and even 3+ times than SATA III interface.  You could definitely use it to play your 4K high-resolution films with no any lagging hassle.  Thunderbolt 2.0 interface not only brings you this high data transfer rate advantage, it also let you chain maximum up to another 5 more DX4-TB2 products (or other compatible storage products).

Transmission performance than the USB 3.1 to be about 2 times faster

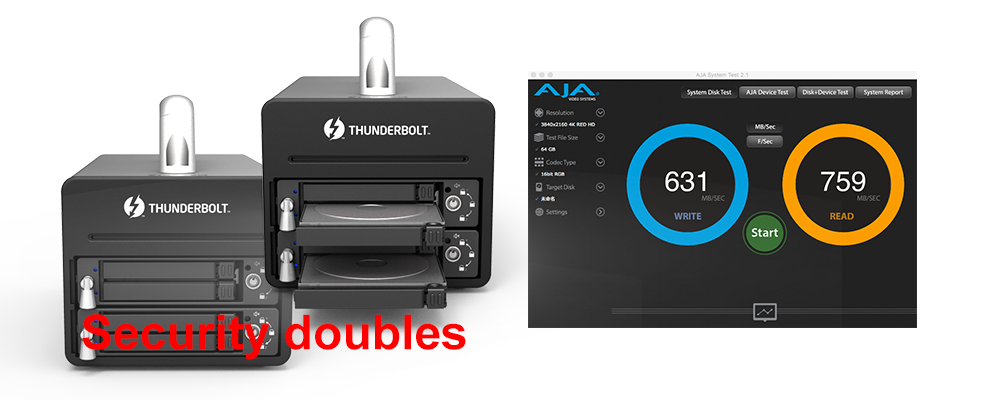

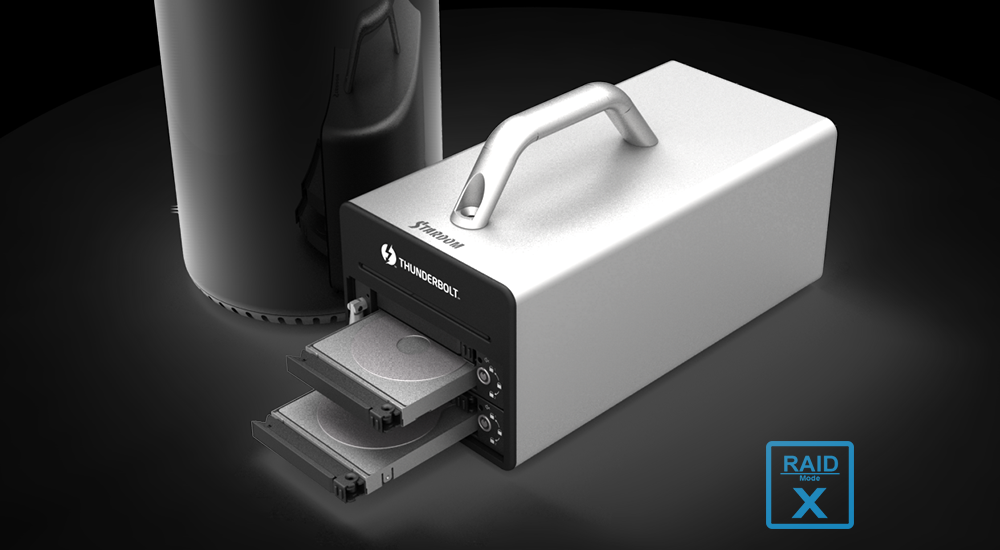

Its RAID X feature provides you a RAID 6 level data protection and RAID 0 data transfer efficiency.





DX4-TB2 could still protect your data while there are two defective HDDs/SSDs at the same time just like what RAID 6 givess you.  And also, its data transfer performance is equivalent to what RAID 0 gives you too.



Because of these two excellent features, the RAID 6 grade data protection and RAID 0 grade data transfer performance, you, as the CEO of a small entity (or enterprise), could definitely rely on it for your daily MIS use.

Even though it's in REBUILDING WORK, DX4-TB2 still keeps the same data transfer rate

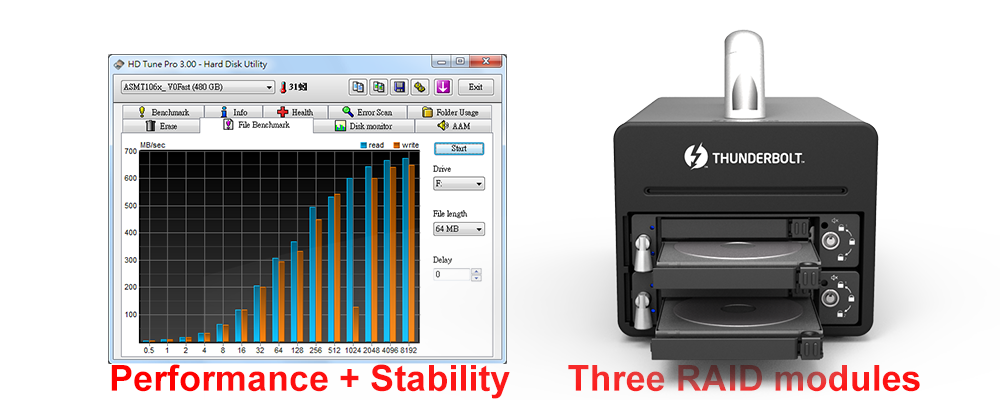

DX4-TB2's very special REBUILDING WORK keeps the same data transfer DX4-TB2's three independent RAID X sets helps providing the same data transfer performance even though one of them is defect.



Its new Tray Lock design to help preventing improper extracting Tray



According to the strict restriction at RAID, any improper work to extract HDD/SSD may cause a serious damage to your data.  And DX4-TB2's new Tray Lock design is to protect any improper extraction at HDD/SSD and then help protecting your valuable data.

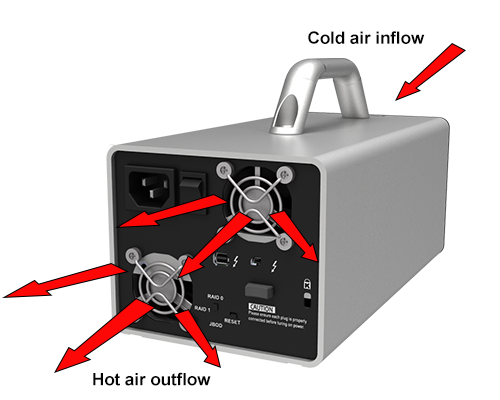

Its excellent heat dissipation to prolong the HDD life cycle



DX4-TB2's two 4 cm silent fan helps dissipating out the heat generated from HDDs/SSDs efficiently and always keep them with low working environment which helps their life cycle.

Environmentally friendly

DX4-TB2 is made from highly recyclable aluminum and it is also free of many harmful toxins which commonly present in the desktop computer manufacturing process.


Advanced power management.

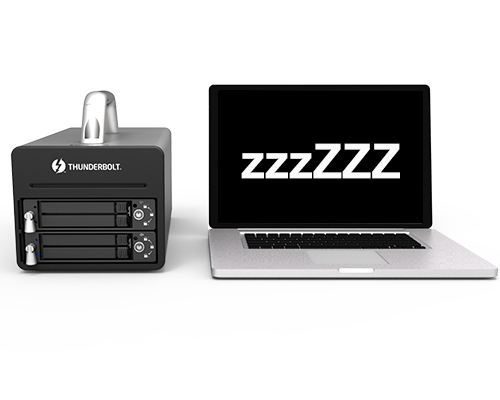

DX4-TB2 uses energy-efficient hardware components that work hand in hand with the Mac system to conserve power. It spins down hard drives and activates sleep mode after a period of inactivity.

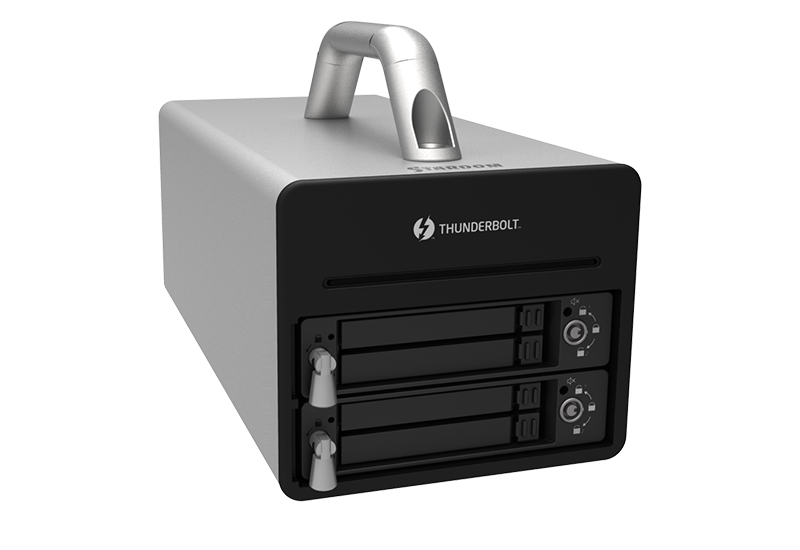

Thunderbolt 2 With DX4-TB2 Stylish and rugged



The DX4-TB2 has a sleek exterior design that’ll never go out of style when placed next to your Mac. It’s also built tough with three millimeter thickness aluminum to shield the enclosed drives durably and to dissipate the heat created by the drives faster for the drives to work comfortably.

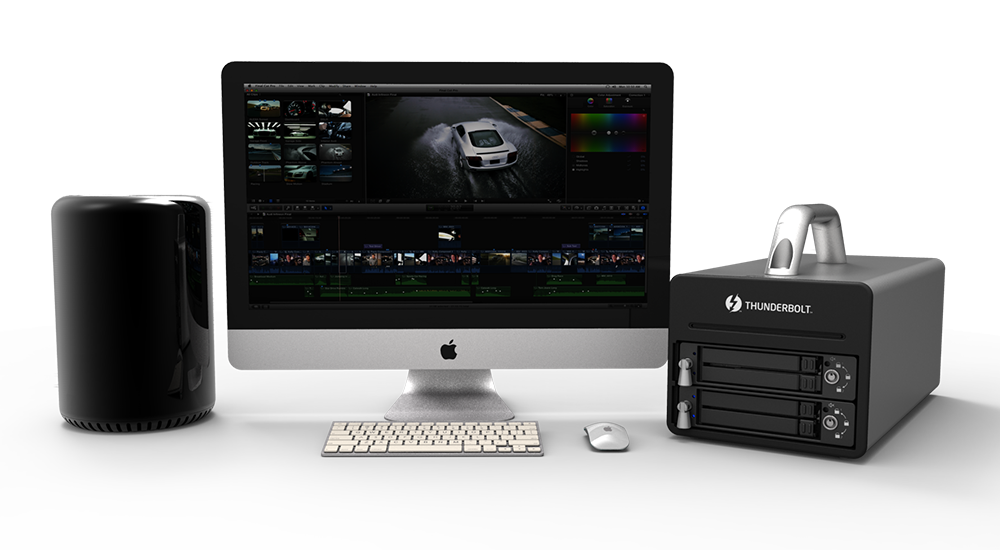

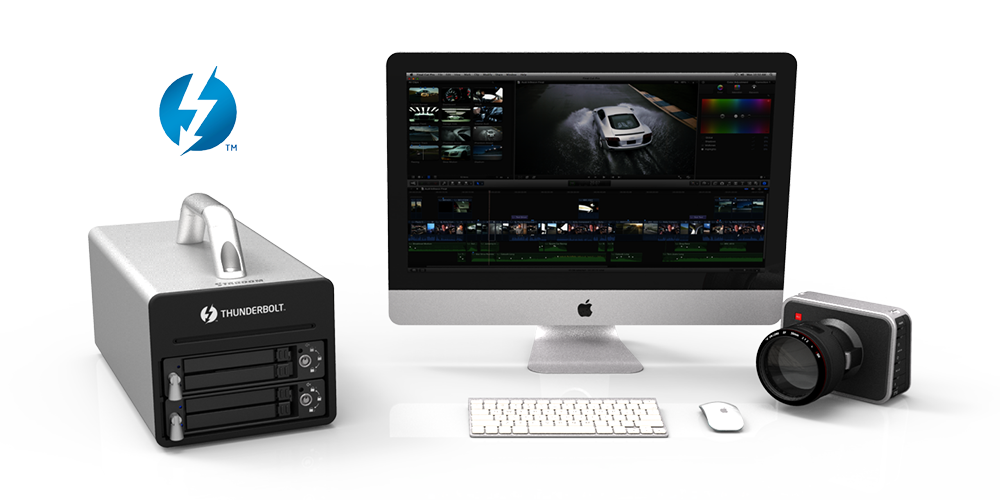

To help you complete your photography projects

With two ultrafast Thunderbolt 2 ports, you can build a photo studio around iMac and DX4-TB2. Or take them with you and import thousands of RAW images on location. Once your photos are on your computer, editing in Aperture is faster and more responsive than before.


DX4-TB2's RAID X mode lets you quickly browse large image libraries from external storage. So you have instant access to any photo in your library.

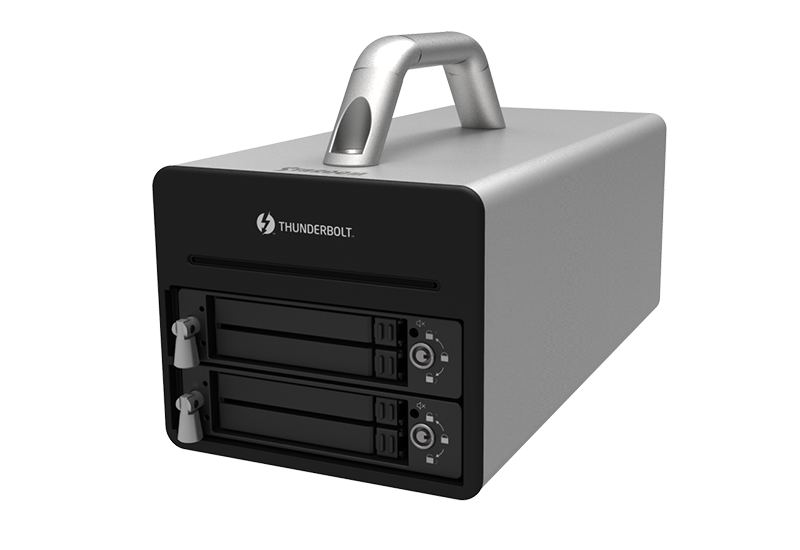

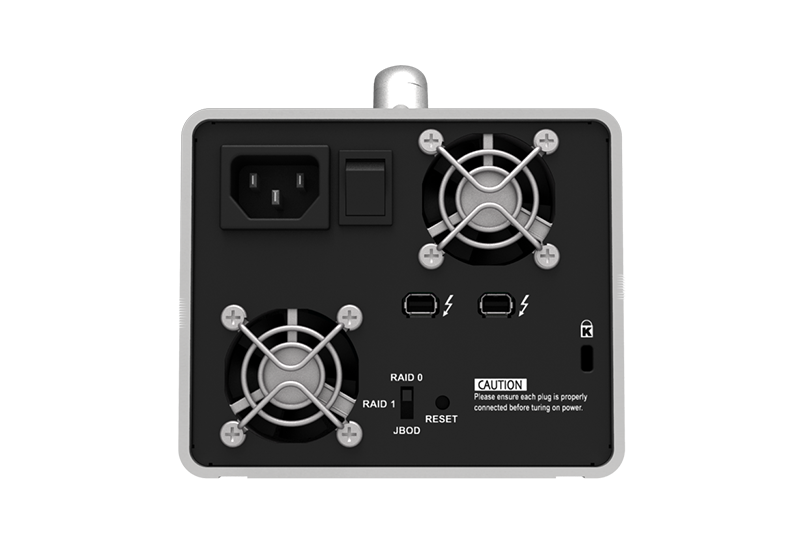

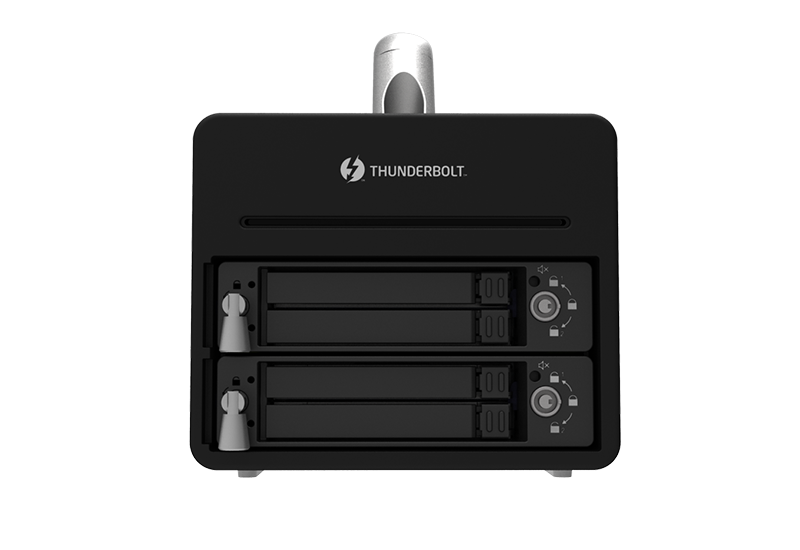

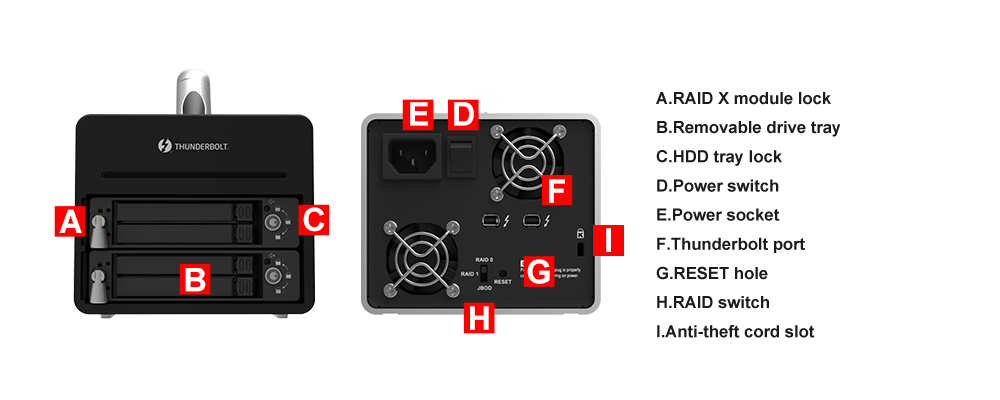

Product View

Specification



Model No DX4-TB2
Interfaces Thunderbolt 2 Port x 2 ( up to 20 Gbps )
Compatible Drive 4 x 2.5" SATA III ( 6.0 Gbits) HDD for RAID X model

ASIC WM6182A x3
RAID Level RAID X
DX4-TB2 default
RAID mode
RAID 0
X Tray default
RAID mode
RAID 1 x 2
Operating System
Support
Windows 7-32/64bit, Windows 10-32/64bit, OS X 10.10 or above
Power Supply 100-240V AC
Status Display LCD Display
Cooling Fan 4cm Fan x 2
Buzzer Alarm Yes
Environment Detector Fan Failure / Overheat
Product Code EAN:4711132865875
UPC:884826501886
Electrical and
Operating
Requirements
* Line voltage: 12V + 5V DC
* Operating temperature: 50° to 95° F (10° to 35° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight 122(W)×102(H)×245.6(L) mm
Package Accessories * DX4-TB2 x 1
* Thunderbolt Cable x 1
* Software CD
* Accessory kit
* Quick Installation Guide



DX4-TB2 Download

Product
Datasheet
QM
UM
CE & FCC
other
DX4-TB2
Image Download

DX4-TB2 Question & Answer

  • Q1Common Technical Questions


DX4-TB2 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
DX4-TB2Samsung2.5" SSD 850 Pro128GB
DX4-TB2Kingston2.5" SSD SHSS37A240GB
DX4-TB2Toshiba2.5" HDD MK5055GSX500GB
DX4-TB2Toshiba2.5" HDD MQ01ABF050500GB
DX4-TB2Toshiba2.5" HDD MQ01ACF050500GB
DX4-TB2Toshiba2.5" HDD MK6459GSX640GB
DX4-TB2Toshiba2.5" HDD MQ01ABD1001TB
DX4-TB2Toshiba2.5" HDD MQ01ABF050500GB
